Subsequent Work

WARNING: This page is about a different variant/trim than selected.

Information

The vehicle must not be lowered completely until the screw securing drive shaft to wheel hub is tightened.

Install lower trailing arm.
> 401719 REMOVING AND REINSTALLING LOWER TRAILING ARM
Secure drive shaft to wheel hub -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

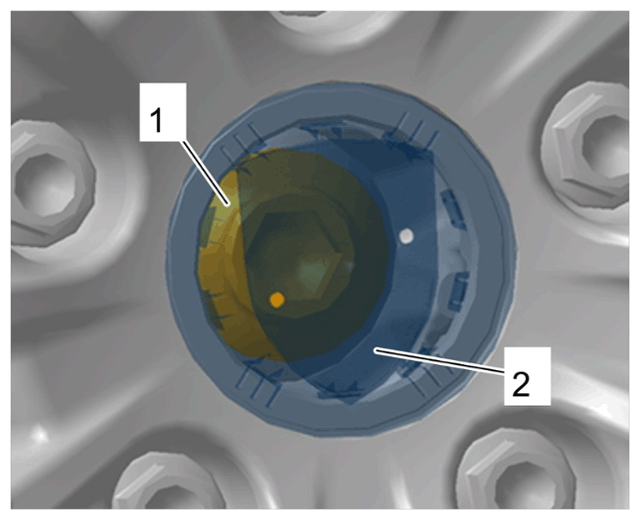

Drive shaft screw
1. 2.1 Lower the vehicle as far as required until the wheels are touching the floor and the screw securing drive shaft to wheel hub -1- can be tightened.
2. 2.2 Fit and tighten new screw securing drive shaft to wheel hub -1- .
  > Initial tightening 200 Nm (148 ftlb.)

  > Final tightening + 180°
3. 2.3 Fit hub cap -2- .
4. 2.4 Lower the vehicle completely.
