Preliminary Work
WARNING: This page is about a different variant/trim than selected.
- Loosen drive shaft from wheel hub -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

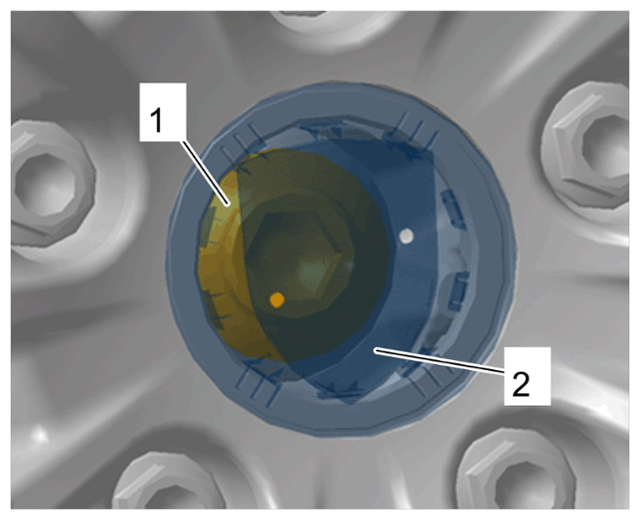

Drive shaft screw
- 1.1 Pull off hub cap -2-
.
- 1.2 Loosen screw on drive shaft -1-
.
- 1.3 Lift the vehicle.
- 1.4 Unscrew drive shaft screw -1-
.
- Remove lower trailing arm.
> 401719 REMOVING AND REINSTALLING LOWER TRAILING ARM
