Technical Values
WARNING: This page is about a different variant/trim than selected.
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Lower trailing arm to front-axle carrier | Item 3: Twelve-point screw M12 x 100 and hexagon nut/always replace screws and nuts following removal! | Initial tightening | 70 Lower Nm (51.6 ftlb.) | ||
| trailing arm to front-axle carrier | Item 3: Twelve-point screw M12 x 100 and hexagon nut/always replace bolts and nuts following removal! | Final tightening | + 180° | ||
| Lower trailing arm to wheel bearing housing, | Item 4: Hexagon nut M14 x 1.5/always replace nut following removal! | Tightening torque | 140 Nm (103.3 ftlb.) | ||
| Spring strut to spring strut fork | Hexagon-head bolt, M12 x 95 and hexagon nut/always replace bolts and nuts following removal! | Initial tightening | 40 Nm (30 ftlb.) | ||
| Spring strut to spring strut fork | Hexagon-head bolt, M12 x 95 and hexagon nut/always replace bolts and nuts following removal! | Final tightening | + 180° | ||
| Angle sensor for HBA | Item 2, 3 | Tightening torque | 8 Nm (6 ftlb.) | ||
|

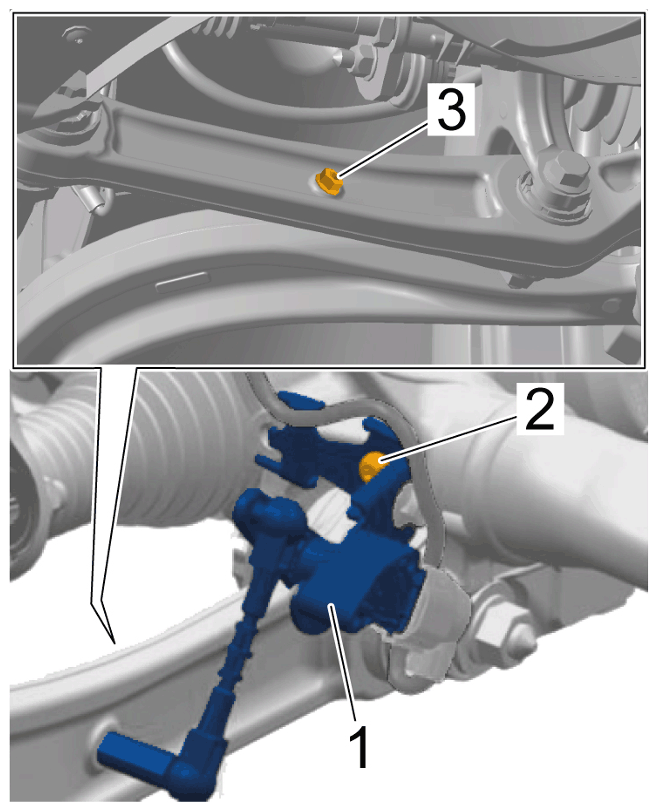

Front angle sensor for headlight beam adjustment (HBA) |
|||||
