Removing Upper Trailing Arm

Information

The procedure for removing and installing is described for one side as an example. The procedure for the other side is almost identical.

1. Remove upper trailing arm -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

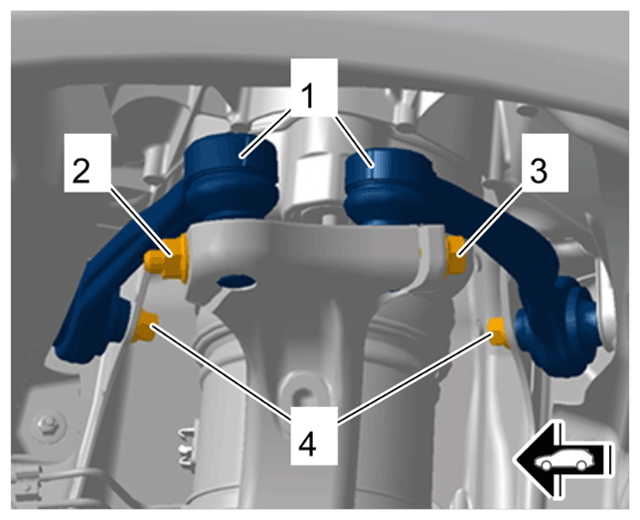

   Upper trailing arm

   1. 1.1 Unscrew nut -2-  and counter at screw -3-  at the same time.
   2. 1.2 Remove screw -3-  .
   3. 1.3 Unscrew the relevant screw -4-  and guide the relevant upper trailing arm -1-  up out of the wheel bearing housing.
