Removing Front-Axle Support (With Pdcc)

WARNING: This page is about a different variant/trim than selected.

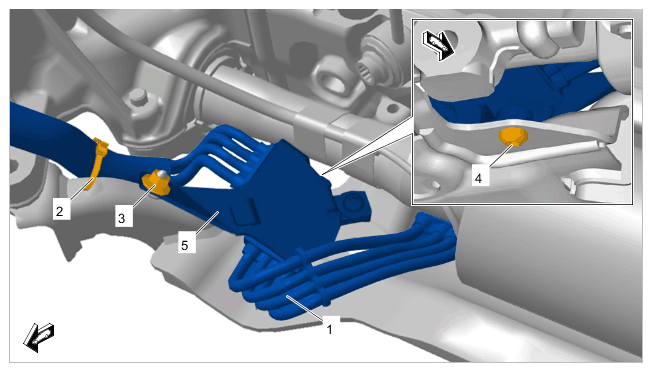

  1. Disconnect electric wire harness for PDCC anti-roll bar -1-  from front-axle support.
    G15259477Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for electric wire harness (PDCC anti-roll bar)

    1. 1.1 Cut tie-wrap -2-  .
    2. 1.2 Screw off nut -3-  .
    3. 1.3 Unscrew screw -4-  .

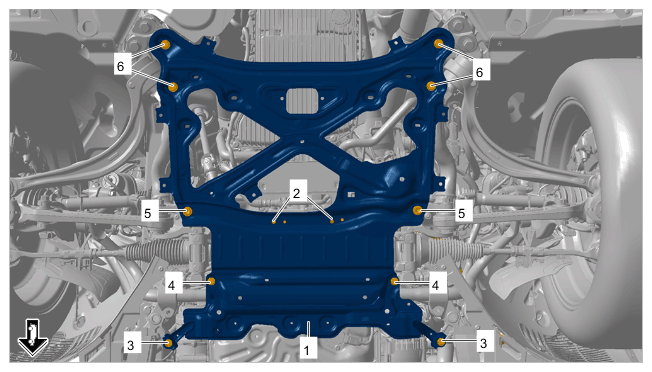

  2. Remove front-axle support -1-  .
    Fig 1: Front-Axle Support Screws Loosening Sequence (PDCC)
    G15259478Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Front-axle support (PDCC)

    1. 2.1 Unclip clips -2-  .
    2. 2.2 Unscrew screws -3 to 6-  and remove front-axle support -1-  .
