Technical Values
WARNING: This page is about a different variant/trim than selected.
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Engine mounting bolts on front axle carrier | M10 x 55 | Torque | 55 Nm (40.6 ftlb.) | ||
| Bolt, engine mounting to front axle | M8 x 50 | Torque | 30 Nm (22.1 ftlb.) | ||

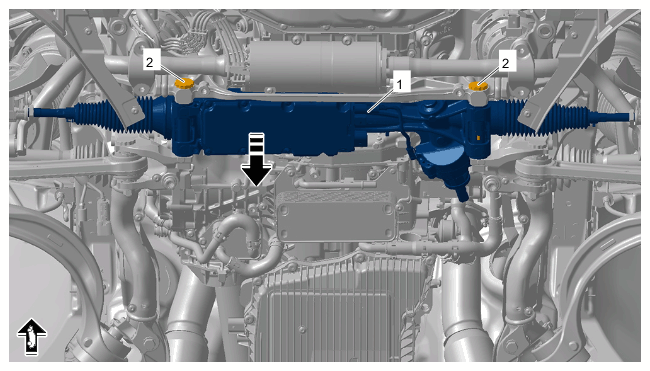

| Power-steering gear on front-axle carrier | Item 2: Hexagon head bolt M12 x 1.5 x 167 and square nut/Always replace bolts and nuts following removal! | Initial tightening | 80 Nm (59 ftlb.) | ||
|
Power-steering gear |
|||||
| Power steering gear to front-axle carrier | Item 2: Hexagon head bolt M12 x 1.5 x 167 and square nut/Always replace bolts and nuts following removal! | Final tightening | + 180° | ||
|
Power-steering gear |
|||||
| diagonal arm to front-axle carrier | Item 6: Hexagonal screw M12 x 140 and hexagon nut/always replace screws and nuts following removal! | Initial tightening | 70 Nm (51.6 ftlb.) | ||
| Diagonal arm to front-axle carrier | Item 6: Hexagon-head screw M12 x 140 and hexagon nut/always replace bolts and nuts following removal! | Final tightening | + 180° | ||
