Technical Values
WARNING: This page is about a different variant/trim than selected.
| Location |
Description |
Type |
Basic value |
Tolerance |
Tolerance |

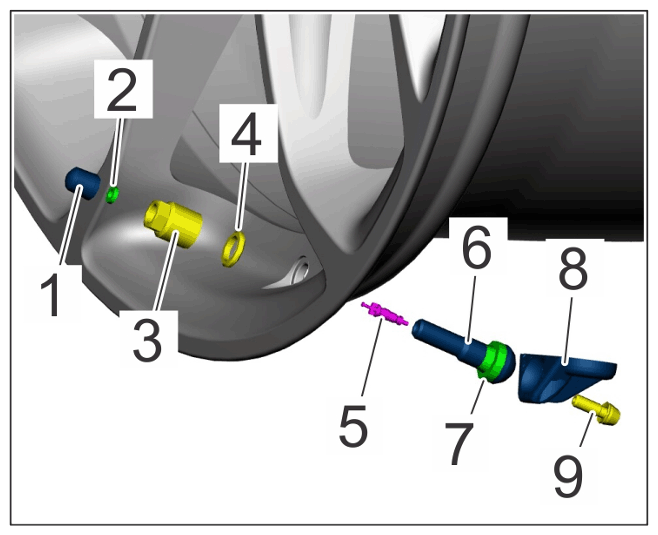

| Wheel electronics unit to TPM valve |
Item 9: Torx screw, M5 x 11/replace |
Tightening torque |
4 Nm (3 ftlb.) |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Wheel valve |
| TPM valve to wheel |
item 3: MM5 union nut |
Tightening torque |
4 Nm (3 ftlb.) |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Wheel valve |
