Removing Front Brake Disc

WARNING: This page is about a different variant/trim than selected.
  1. Remove brake disc front.

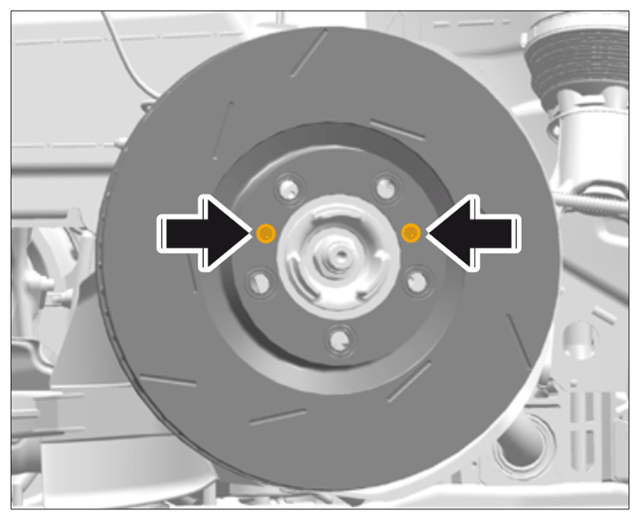

    G15290062Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Brake disc front

    1. 1.1  Unscrew screws on brake disc front -Arrows-  .
    2. 1.2  Remove brake disc front.
