Removing Brake Pedal

1. Disconnect brake booster push rod -2-  from brake pedal -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

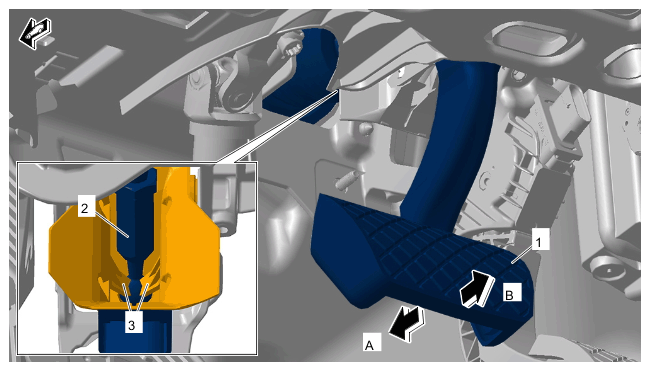

   Push rod on brake pedal

   1. 1.1  Press the brake pedal -1-  towards the brake booster with your hand. -arrow A-
   2. 1.2  > T40136 - Release tool  must be positioned at the retaining lugs -3-  of the ball joint mounting.
   3. 1.3  Release retaining lugs -3-  using > T40136 - release tool  and counter at the brake pedal -1-  .
   4. 1.4  Pull brake pedal -1-  together with > T40136 - release tool  away from the push rod -2-  . -arrow B-
2. Unscrew screw -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

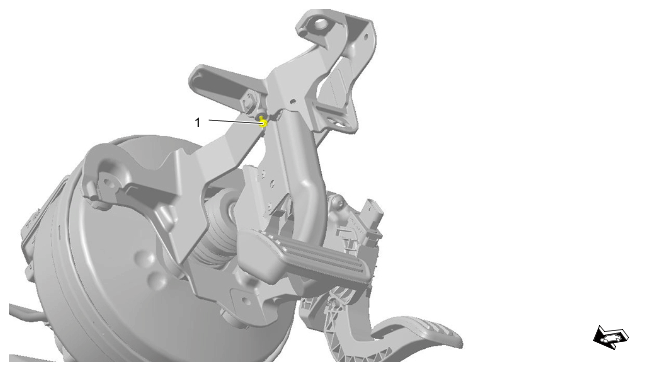

   Screw for brake pedal mounting saddle

3. Remove brake pedal -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

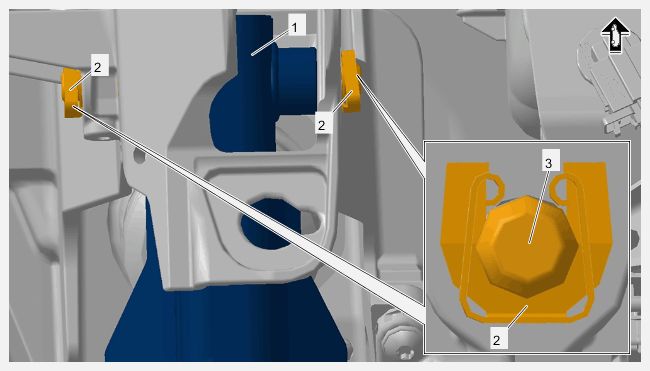

   Brake pad removal

   1. 3.1  Pull safety clips -2-  off the bolts -3-  .
   2. 3.2  Remove bolts -3-  from mounting saddle and remove brake pedal -1-  by pulling it down out of the mounting saddle -Arrow-  .

Installing brake pedal

1. Install brake pedal -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Brake pedal

   1. 1.1  Insert brake pedal -1-  into the mounting saddle.
   2. 1.2  Insert bolts -3-  into the mounting saddle and brake pedal -1-  .
   3. 1.3  Push on safety clips -2-  on bolts -3-  and check that the safety clips -2-  are seated correctly.
2. Fit and tighten screw -1-  .

   > Tightening torque 8 Nm (6 ftlb.)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Screw for brake pedal mounting saddle

3. Engage brake booster push rod in the ball joint mounting on the brake pedal. It must lock with an audible click.
