Removing Rear Speed Sensor
WARNING: This page is about a different variant/trim than selected.
- Release and disconnect electric plug connection for rear speed sensor -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

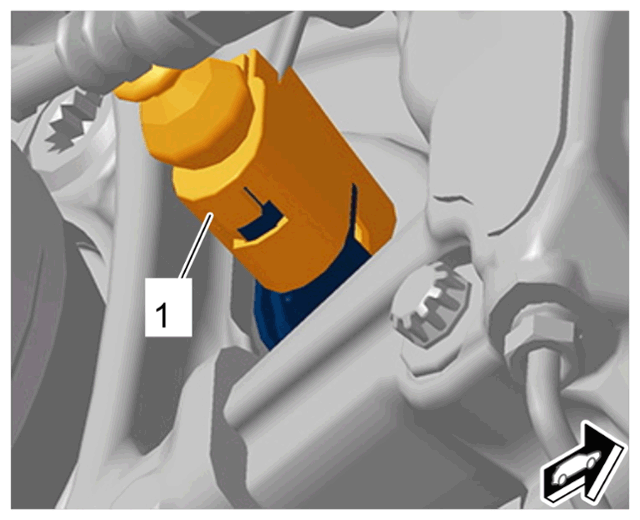

Electric plug connection for rear speed sensor
- Remove rear speed sensor -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

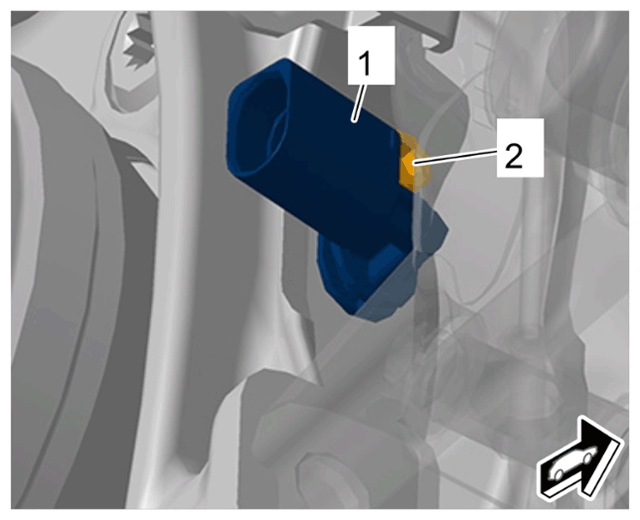

Rear speed sensor
- 2.1
Unscrew screw on rear speed sensor -2-
.
- 2.2
Guide rear speed sensor -1-
out of the wheel bearing housing and remove it.
