Technical Values
WARNING: This page is about a different variant/trim than selected.
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|

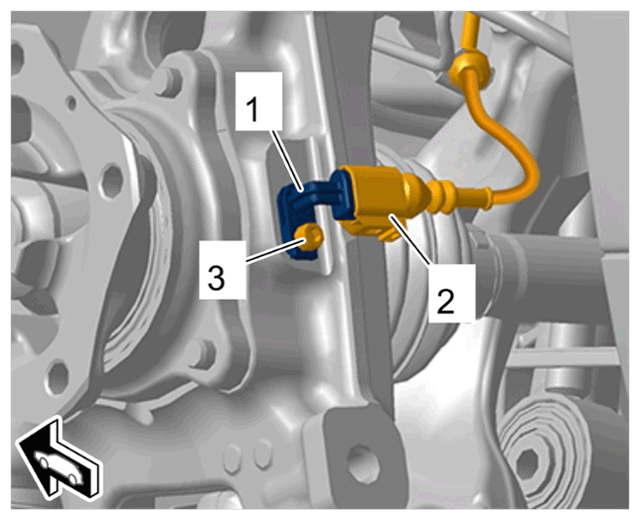

| Speed sensor front to wheel bearing housing | Item 1: Cheese head bolt M6 x 16 | Tightening torque | 9 Nm (6.6 ftlb.) | ||
|
Front speed sensor |
|||||

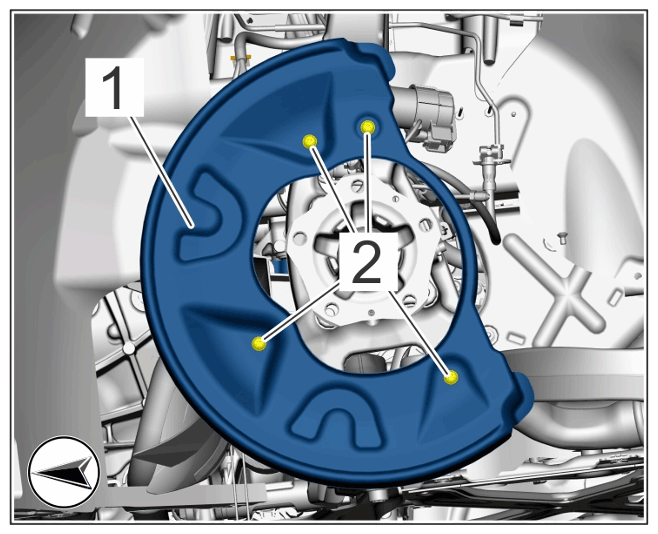

| Brake cover plate to wheel bearing housing | Item 2: Internal hexagon roundhead bolt M6 x 14 | Tightening torque | 10 Nm (7.4 ftlb.) | ||
|
Brake cover plate, front |
|||||
