Subsequent Work

WARNING: This page is about a different variant/trim than selected.

Install brake cover panel -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

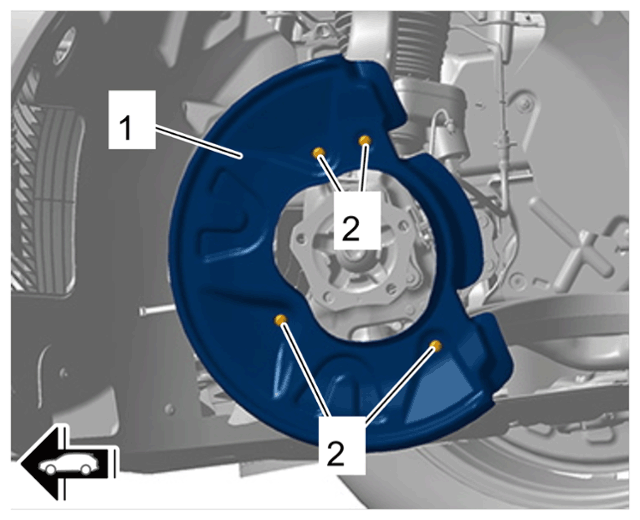

Brake cover panel, front
1. 1.1 Fit brake cover panel -1- .
2. 1.2 Screw in and tighten screws on brake cover panel -2- .
  > Tightening torque 10 Nm (7.4 ftlb.)
Install brake disc.

> Removing and installing front brake disc
