Removing Front Speed Sensor

WARNING: This page is about a different variant/trim than selected.
  1. Remove front speed sensor -1-  .

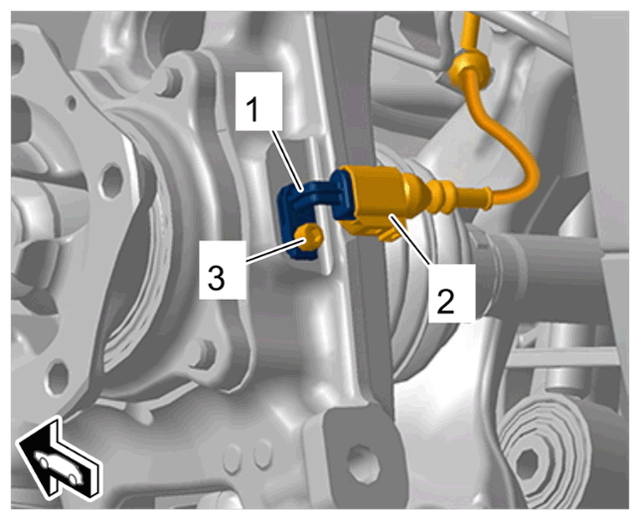

    G15279826Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Front speed sensor

    1. 1.1  Release and disconnect electro plug connection for front speed sensor -2-  .
    2. 1.2  Unscrew screw on front speed sensor -3-  .
    3. 1.3  Remove front speed sensor -1-  .
