Installing Bellows For Steering-Gear Housing

Information

During fitting, make sure that the steering-gear housing bellows is not twisted and that the clamp lugs are easy to reach.

1. Fit new clamp -Arrow-  using > V.A.G 1275A - hose clip pliers  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

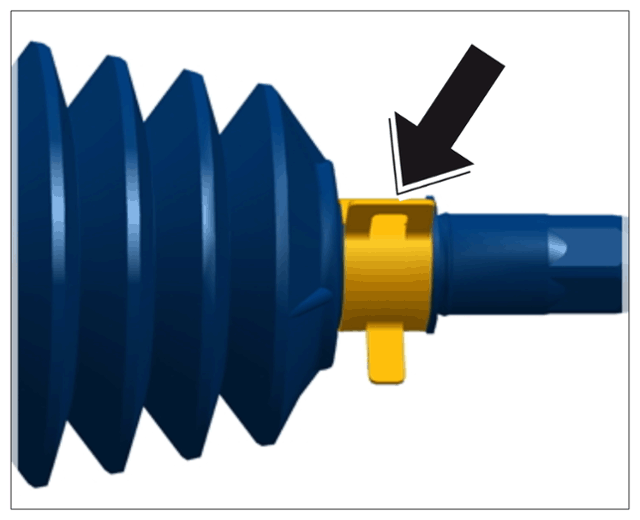

   Fitting clamp on steering-gear housing bellows

2. Fit spring band clamp -Arrow-  using > VAS 6890 - spring band clamps pliers  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

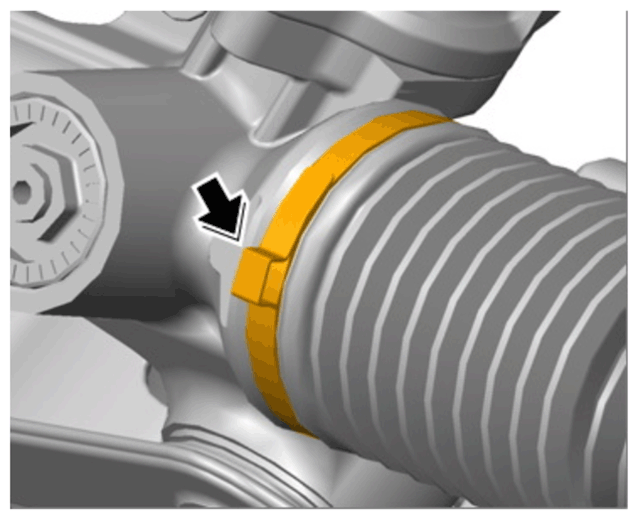

Spring band clamp on steering-gear housing bellows
