Technical Values

WARNING: This page is about a different variant/trim than selected.
Location Description Type Basic value Tolerance 1 Tolerance 2
steering column on steering column centre (universal joint) Item 2: Internal serration screw M8 x 30/Always replace screw following removal! Initial tightening 20 Nm (14.8 ftlb.)
Steering column to steering column centre (universal joint) Item 2: Internal multitooth screw M8 x 30/replace screw after every removal! Final tightening + 90°

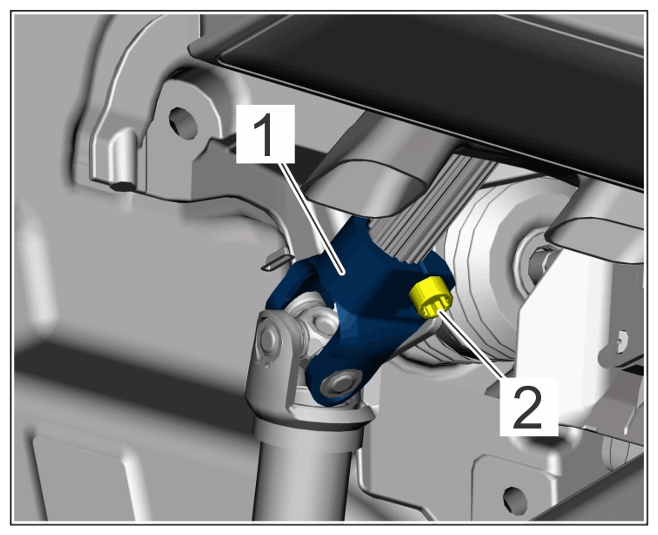

G15290265Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Universal joint steering column centre/bottom
steering column lower part on power steering (universal joint) Item 2: Internal multitooth screw M8 x 30/Always replace screw following removal! Initial tightening 20 Nm (14.8 ftlb.)
Steering column lower part to power steering (universal joint) Item 2: Internal multitooth screw M8 x 30/replace screw after every removal! Final tightening + 90°

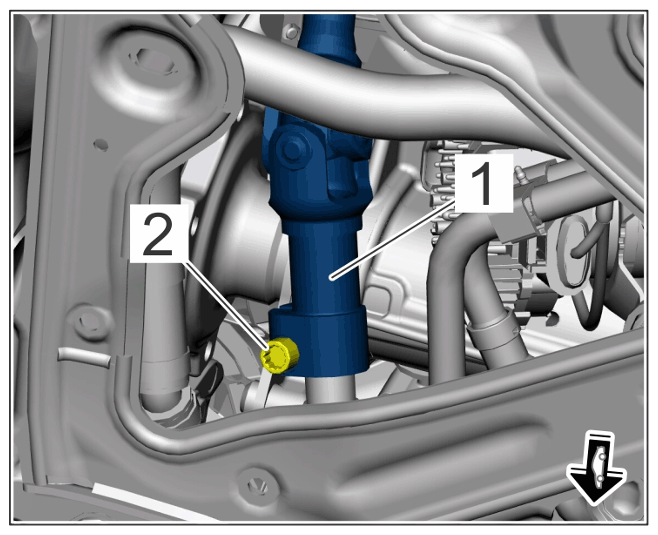

G15290266Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Universal joint for power-steering/steering column lower part
Sealing sleeve for steering column lower part to body M6 screw (LHD vehicles only) Tightening torque 4.5 Nm (3.3 ftlb.)
G15290267Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Sealing sleeve on steering column lower part (view of left-hand drive vehicle)
Sealing sleeve for steering column lower part to body Item 3: Nuts M6 Tightening torque 4.5 Nm (3.3 ftlb.)

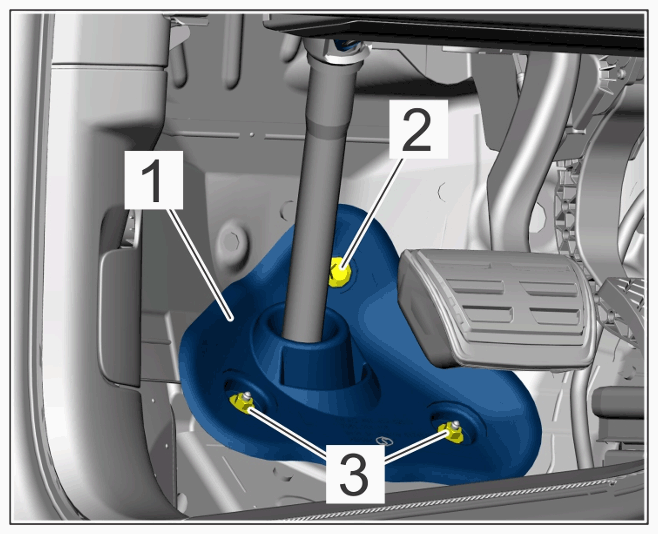

G15290268Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Sealing sleeve on steering column lower part (view of left-hand drive vehicle)
