Cardan Shaft

WARNING: This page is about a different variant/trim than selected.

Component overview of cardan shaft:

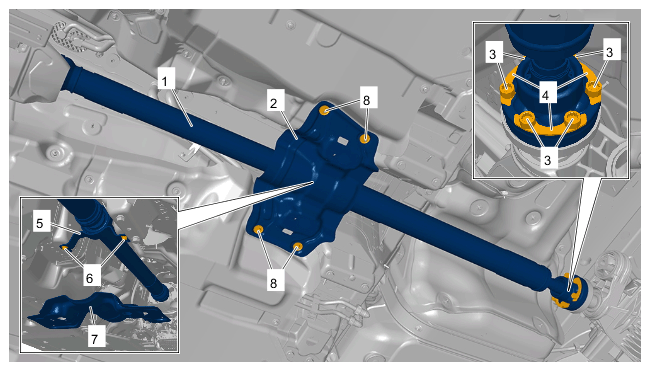

Fig 1: Cardan Shaft Components Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Assembly overview - cardan shaft

1	Cardan shaft
2	Centre bearings with heat shield
3	Screw, M10 x 45 > "Initial tightening 50 Nm (37 ftlb.)" > "Final tightening torque angle 90°"
4	Plate
5	Centre bearing
6	Screw, M8 x 25 > "Tightening torque 20 Nm (15 ftlb.)"
7	Heat shield
8	Hexagon nut > "Tightening torque 2.1 Nm (1.6 ftlb.)"
