Technical Values
WARNING: This page is about a different variant/trim than selected.
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Brake mounting plate to wheel bearing housing | Internal hexagon roundhead bolt, M6 x 14 | Tightening torque | 8 Nm (5.9 ftlb.) | ||

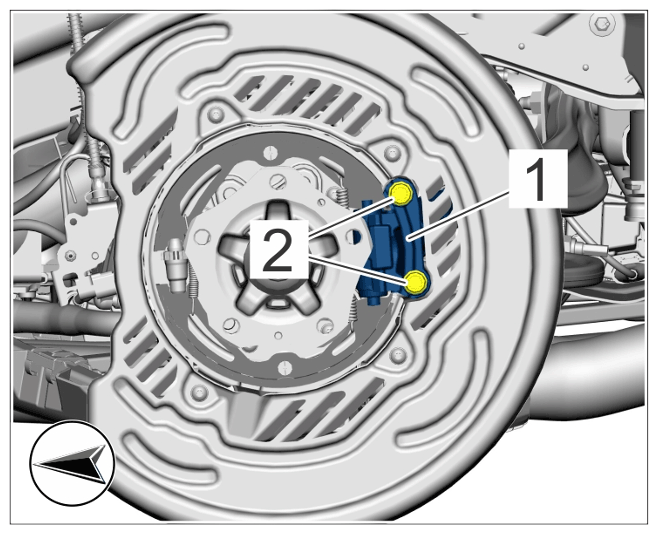

| Actuator (electric parking brake) to wheel bearing housing | Item 2: Internal serration screw M10 x 40/Always replace screws following removal | Initial tightening | 20 Nm (14.8 ftlb.) | ||
|
Electric parking brake actuator |
|||||
| Actuator (electric parking brake) to wheel bearing housing | Item 2: Internal multipoint screw M10 x 40/Always replace screw following removal! | Final tightening torque | + 60° | ||
|
Electric parking brake actuator |
