Removing Spreader Device

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

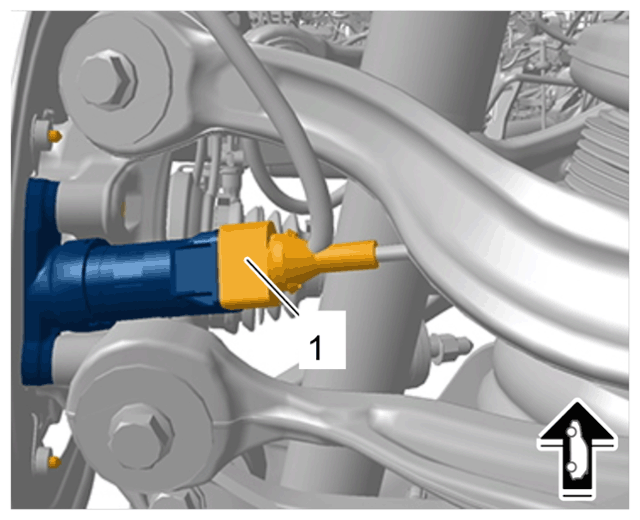

Electric plug connection for spreader device

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

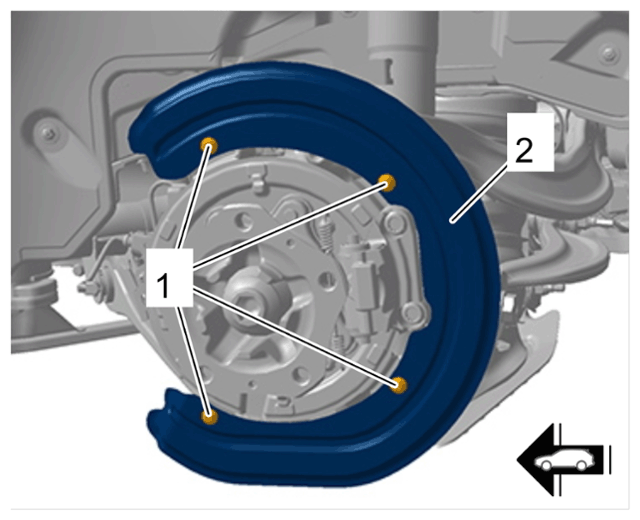

Cover plate for brake disc

1. 2.1  Unscrew and remove screws -1-  .
2. 2.2  Remove cover plate for brake disc -2-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

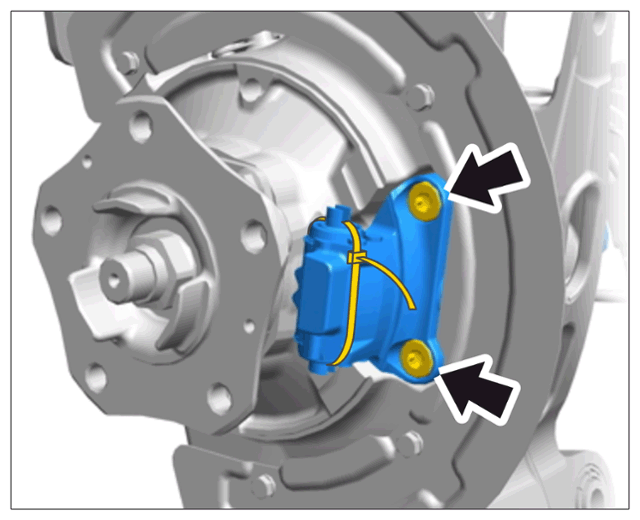

Spreader device mounting

Information

The spreader device (actuator) is fitted on the rear-axle wheel bearing housing. It is the servo motor for the electric parking brake (EPB) and spreads the parking-brake shoes when actuated.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

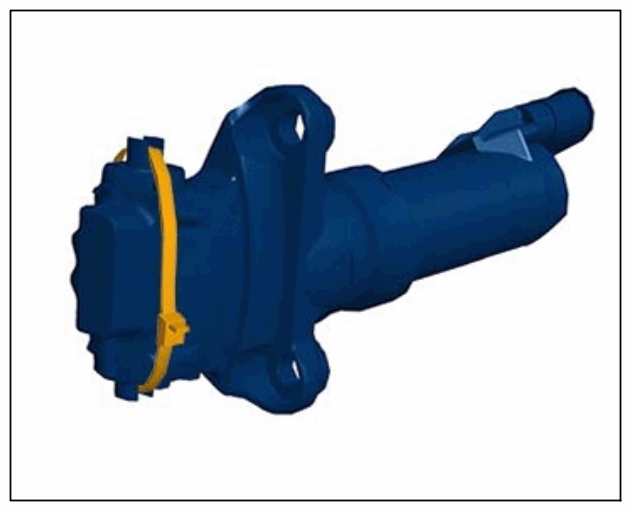

Spreader device

• When removing the spreader device, a tie-wrap must be secured to the actuator pins to prevent them from turning.

1. 3.1  Fasten tie-wrap on actuator pins on the spreader device.
2. 3.2  Unscrew screws securing spreader device to wheel bearing housing -Arrows-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

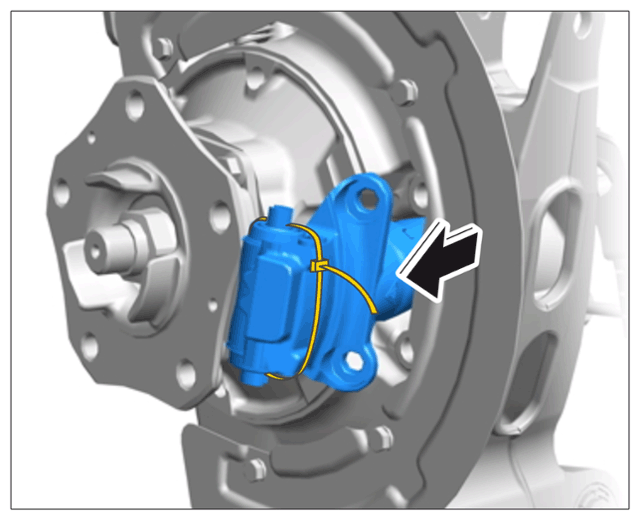

Removing spreader device

1. 4.1  Remove spreader device in -direction of arrow-  .
