Emergency Release For EPB

Information

Only use the emergency release if the brake can no longer be released electrically (actuator faulty).

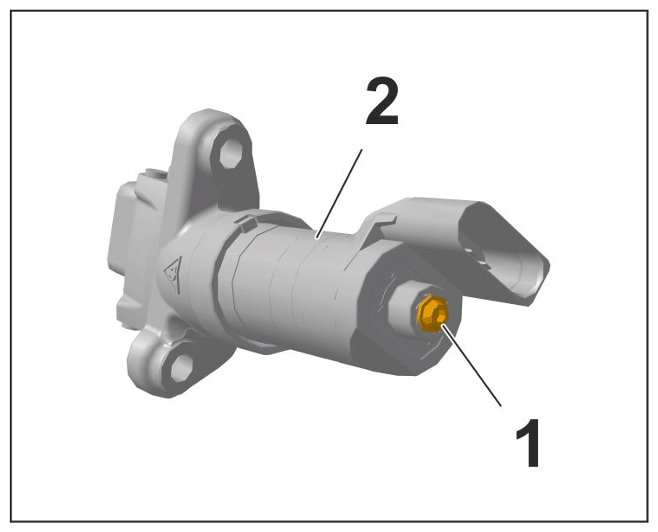

1. Unscrew oval-head screw -1-  on the back of the actuator -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Oval-head screw on EPB actuator

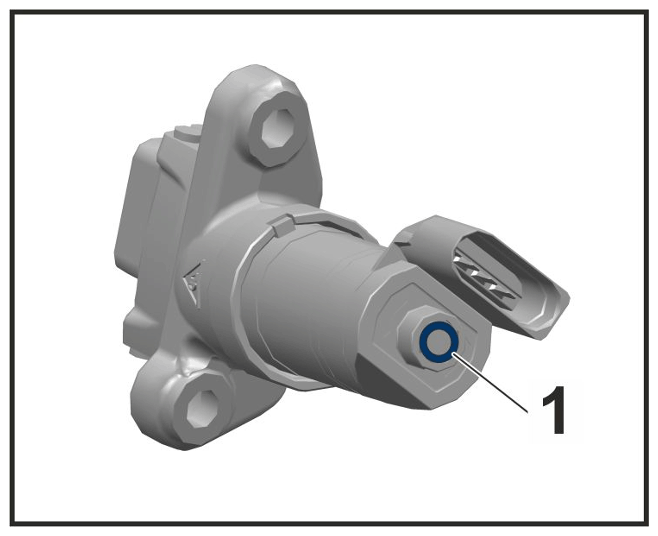

2. Remove seal -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Seal

3. Screw in oval-head screw -1-  (without seal) as far as it will go in order to pierce the cover.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Oval-head screw on EPB actuator

4. Unscrew oval-head screw -1-  again.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Oval-head screw on EPB actuator

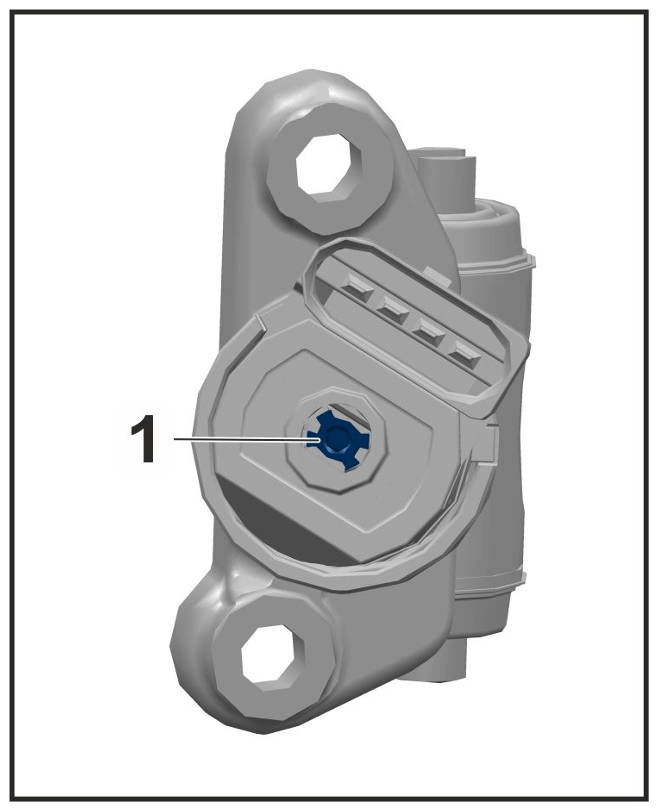

5. Turn emergency release screw -1-  approx. 300 turns anti-clockwise until there is a noticeable increase in torque (brake shoes are loosened fully).

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Emergency release screw
