Technical Values
WARNING: This page is about a different variant/trim than selected.
| Location |
Description |
Type |
Basic value |
Tolerance 1 |
Tolerance 2 |
| Plug for brake disc |
Item 3: M12 x 5 thread |
Tightening torque |
15 Nm (11.1 ftlb.) |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.

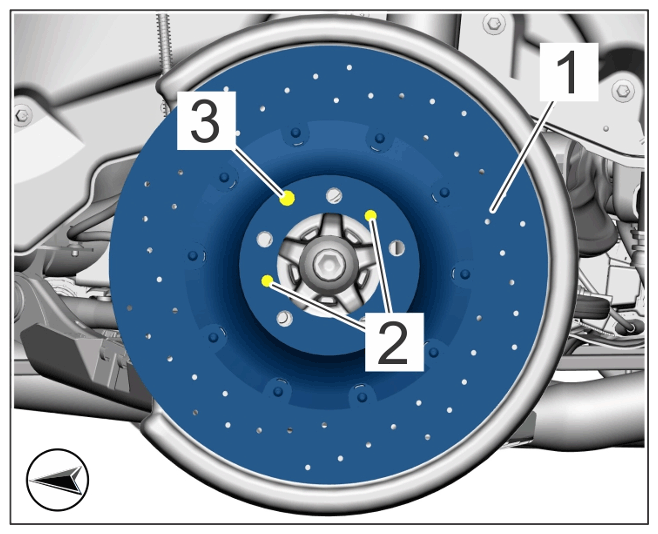

Brake disc rear (view of PCCB) |
|
|
|
|
|
| Adjustment device |
1 click corresponds to |
Adjustment value |
0.15 mm |
|
|
