Removing Rear PCCB Brake Disc

NOTIFICATION

Removal of brake calliper

• Paint defects on brake calliper

  → Proceed with care when setting back the brake pads.

  → Protect the paintwork on the brake calliper from damage using a suitable cloth.

1. Remove PCCB brake disc.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

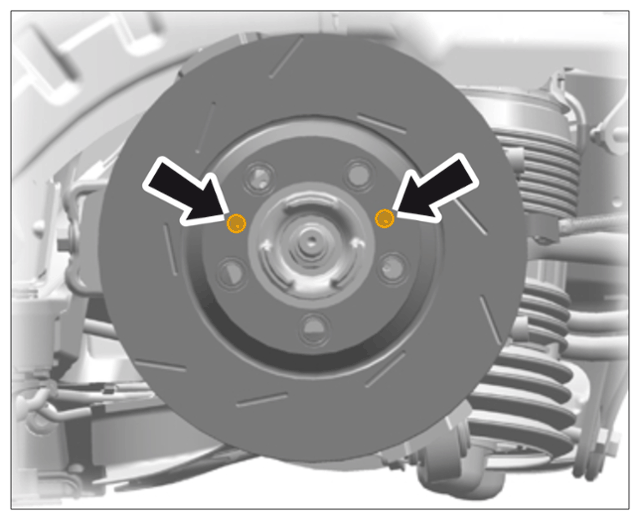

   Rear PCCB brake disc

   1. 1.1  Unscrew screws on brake disc -Arrows-  .
   2. 1.2  Remove PCCB brake disc.
