Suspending Brake Calliper In Wheel Housing

WARNING: This page is about a different variant/trim than selected.

Release and disconnect electric plug connection for brake pad wear indicator -3- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

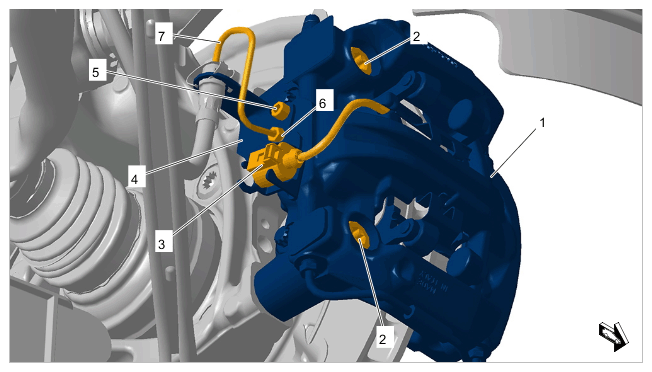

Rear brake calliper
Loosen brake calliper -1-

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear brake calliper
1. 2.1 Unscrew screws on brake calliper -2- .
Suspend brake calliper -1- in the wheel housing.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

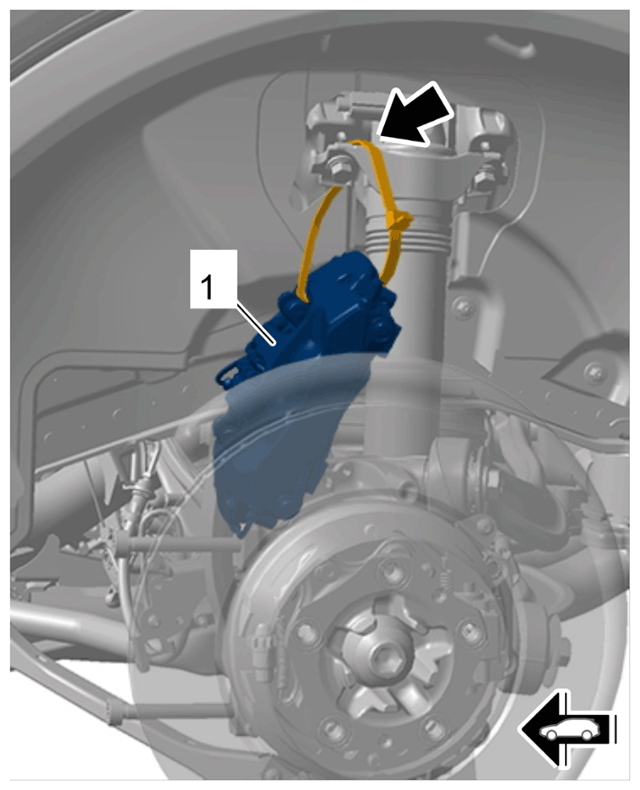

Brake calliper in wheel housing (shown as an example)
1. 3.1 Have suitable fastening elements (e.g. tie-wraps) ready for suspending the brake calliper
2. 3.2 Secure fastening elements (e.g. tie-wraps) at a suitable position.
3. 3.3 Remove brake calliper -1- from the wheel bearing housing and secure it on the upper control arms.
  Do not suspend the brake calliper -1- on the brake line or on the electric line for the brake pad wear indicator.
4. 3.4 Protect brake calliper -1- with a cloth to prevent paint damage.
