Technical Values
WARNING: This page is about a different variant/trim than selected.
| Location |
Description |
Type |
Basic value |
Tolerance 1 |
Tolerance 2 |
| Rear brake disc to wheel hub |
Item 2: Counter sunk screw, M6 x 12 (microself-locking)/always replace screws following removal! |
Tightening torque |
8 Nm (5.9 ftlb.) |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.

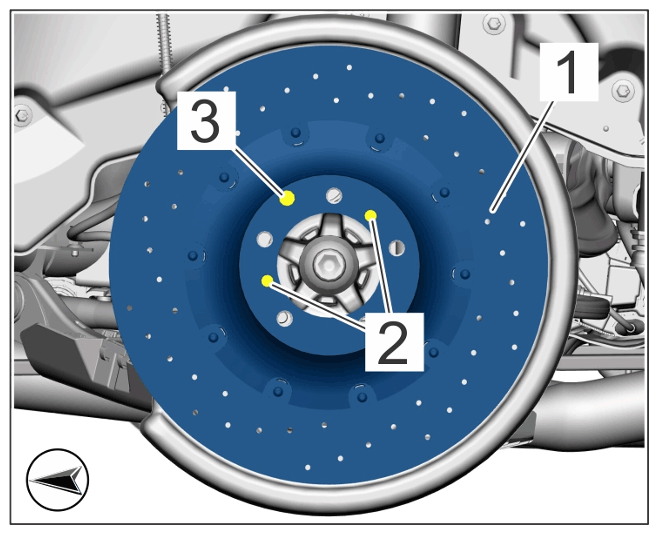

Brake disc rear (view of PCCB) |
|
|
|
|
|
