Remove Brake Disc Rear

WARNING: This page is about a different variant/trim than selected.

NOTIFICATION

Removal of brake calliper

Paint defects on brake calliper
→ Proceed with care when setting back the brake pads.

→ Protect the paintwork on the brake calliper from damage using a suitable cloth.

Select brake pad change mode using PIWIS Tester.
1. 1.1 Select → 'Brake electronics (PSM, incl. parking brake)' in the 'Control unit overview' and press F12 to confirm your selection.
2. 1.2 Select 'Drive links/checks' → 'Start brake pad change mode' and start the procedure.
Removing the brake disc.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

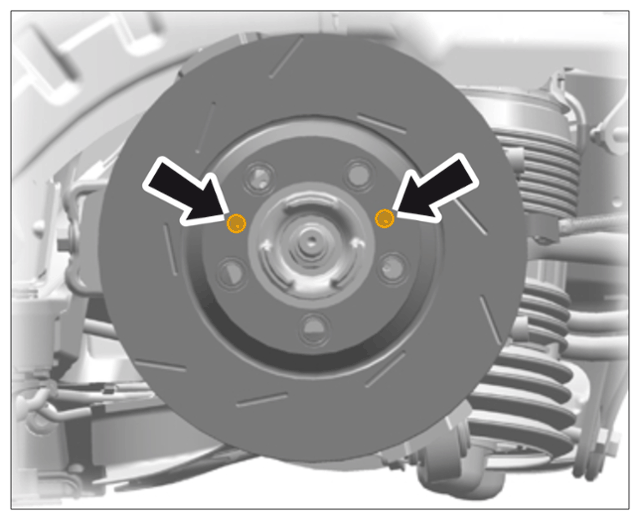

Brake disc rear
1. 2.1 Unscrew screws on brake disc -Arrows- .
2. 2.2 Removing brake disc.
