Technical Values
WARNING: This page is about a different variant/trim than selected.
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|

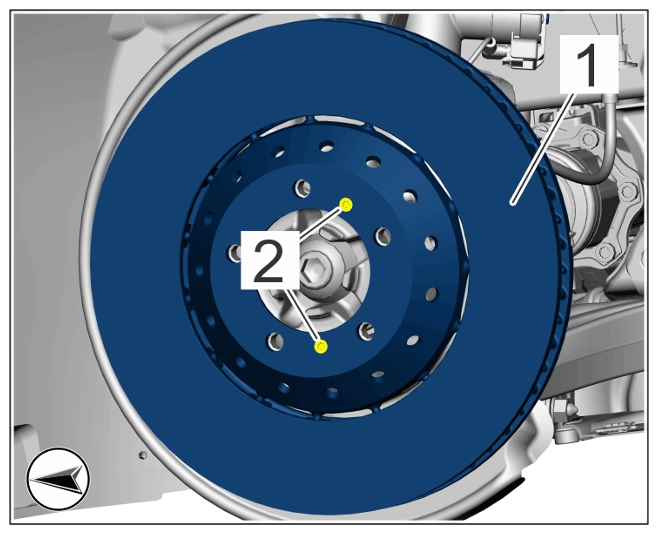

| Front brake disc to wheel hub | Item 2: Counter sunk screw, M6 x 12 (microself-locking)/always replace screws following removal! | Tightening torque | 8 Nm (5.9 ftlb.) | ||
|
Brake disc front (view of grey cast-iron brakes) |
|||||
| Brake calliper to wheel bearing housing | Cheese head bolt, M14/always replace screws or bolts following removal | Initial tightening | 30 Nm (22 ftlb.) | ||
| Brake calliper to wheel bearing housing | Cheese head bolt, M14/always replace screws or bolts following removal | Final tightening | + 90° |
