Removing Front Brake Disc

WARNING: This page is about a different variant/trim than selected.
  1. Move brake calliper into service position or hang it in the wheel housing.
  2. Remove brake disc.

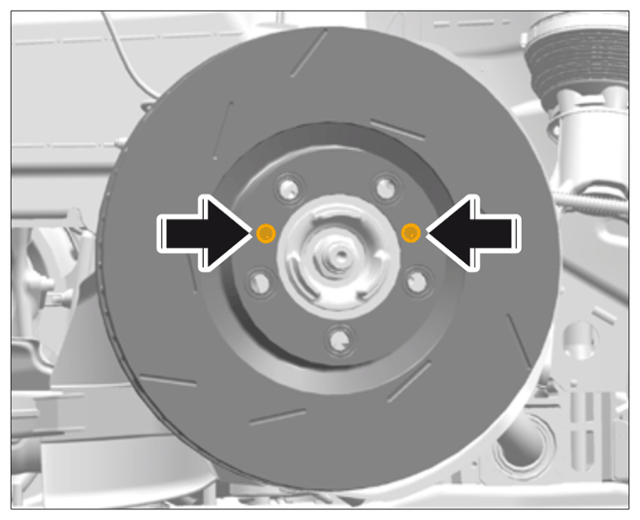

    G15288967Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Front brake disc

    1. 2.1  Unscrew screws on brake disc -Arrows-  .
    2. 2.2  Remove brake disc.
