Moving Brake Calliper Into Service Position

WARNING: This page is about a different variant/trim than selected.
  1. Loosen line bracket -1-  .

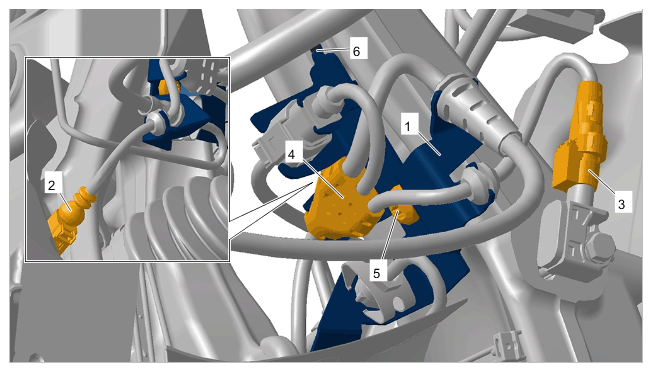

    G15288962Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Brake line bracket

    1. 1.1  Release and disconnect electric plug connections -2 and 3-  .
    2. 1.2  Disengage line -4-  .
    3. 1.3  Unscrew screw on line bracket -5-  .
    4. 1.4  Disengage retaining lug on line bracket -6-  .
  2. Move brake calliper -1-  into service position.

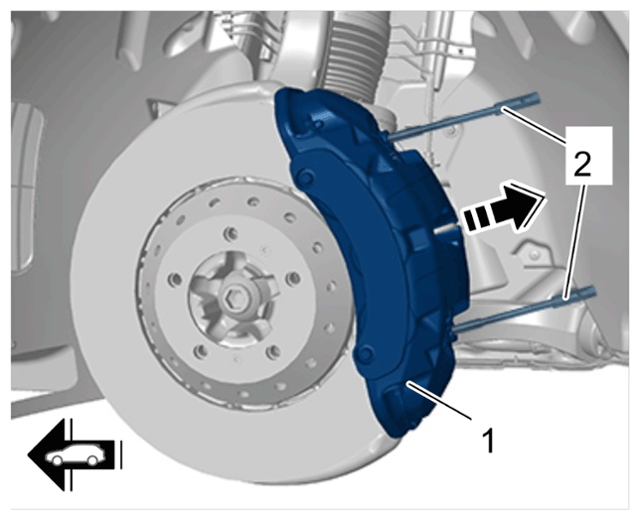

    G15288963Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Brake calliper service position

    1. 2.1  Unscrew brake calliper screws one after the other and replace them with > T10439 - assembly pin-2-  .
    2. 2.2  Guide brake calliper -1-  onto > T10439 - assembly pin-2-  from the brake disc -Arrow-  and set it down at the end position on > T10439 - assembly pin-2-  .
