Installing Front Brake Disc

Information

Do not confuse left and right brake discs during installation!

Distinguishing feature: Part number! The flat surface of the brake discs is marked with R = right or L = left!

1. Only when re-using brake discs:

   Check front disc brake pads.

   > Checking front disc brake pads

2. Only when re-using brake discs:

   Check front brake disc (wear assessment).

   > Checking front brake discs (grey cast-iron)

3. Clean the levelling and centering surfaces on the brake disc and wheel hub.
4. Apply a very thin coat of Optimoly TA to the centering surface on the wheel hub.
5. Install front brake disc.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

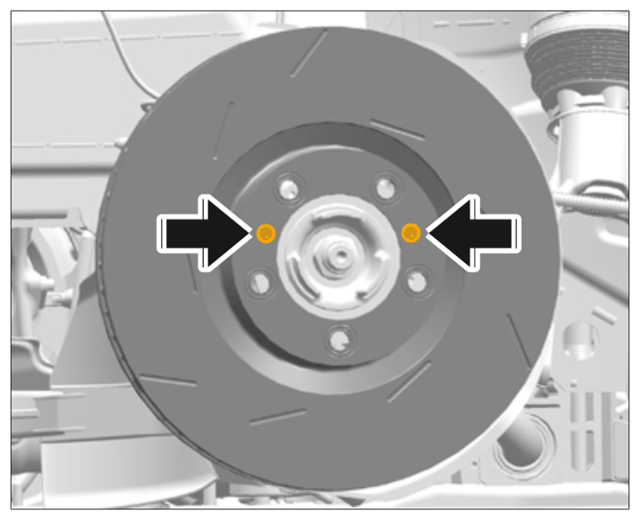

   Front brake disc

   1. 5.1  Position front brake disc on contact surface.
   2. 5.2  Fit and tighten screws for front brake disc -Arrows-  .

      > Tightening torque 8 Nm (5.9 ftlb.)
