Installing Rear Disc Brake Pads

WARNING: This page is about a different variant/trim than selected.

WARNING: Installation of brake pads with the wrong brake pad quality

Longer braking distance
More wear on brake pads
→ Only use the type-specific brake pads listed in the Porsche Parts Information.

→ Replace brake pads on both sides of axle when the brake pad wear indicator light comes on.

WARNING: Old mounting parts fitted on the bake calliper

Reduced braking effect
Risk of damage to the brake calliper
→ Fit new pad retaining springs.

→ Fit new fastening screws.

Information

The backs of the pad backing plates must not be greased.
Check disc brakes for wear. For details of wear limits, see below
> 465102 CHECKING FRONT PCCB BRAKE DISCS (WEAR ASSESSMENT)
Disc brakes must be clean and free of grease.
The core of the warning contact wire must not be left exposed! It does not matter if the insulation is worn.
If necessary, remove a little brake fluid from the reservoir by suction in order to prevent an overflow when the disc brake pads are pushed back.
Use new repair kit.

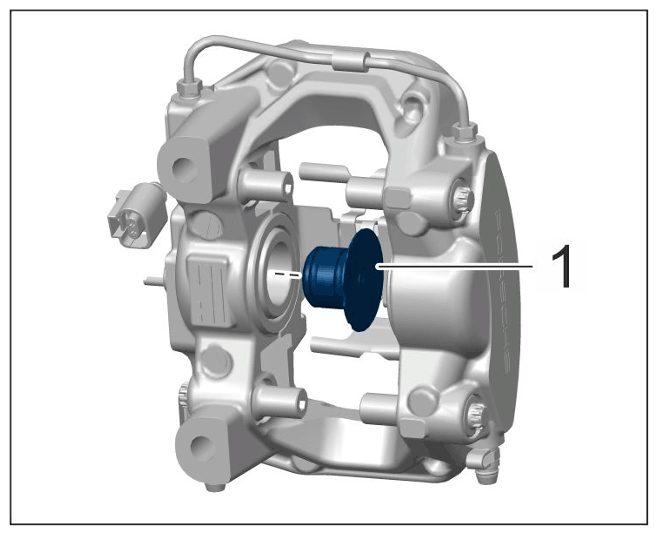

Only for standard brake calliper (18-inch, black/green) and only for North America (M-no. 1KV/AV2): Install balancing weights -1- in piston.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Balancing weights
Fit new pad retaining clips.

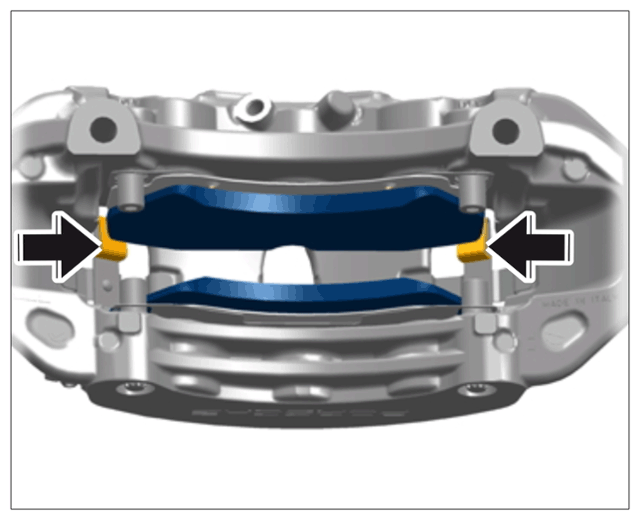

Place disc brake pad on the sealing surfaces of the pad retaining clips -Arrows- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Brake pad

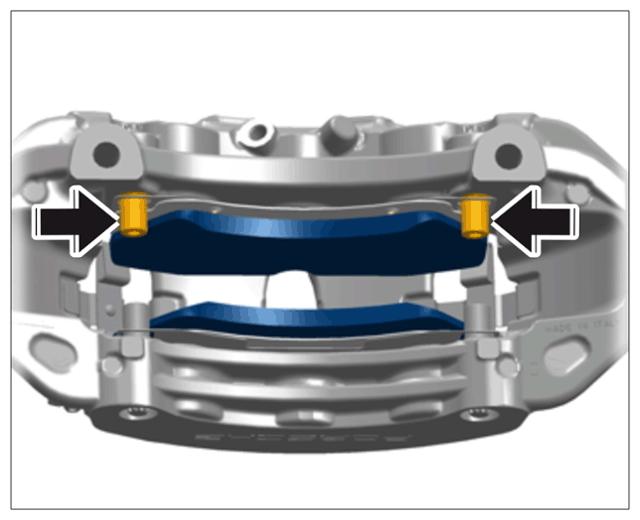

Position disc brake pad on the pad retaining pins -Arrows- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Brake pad

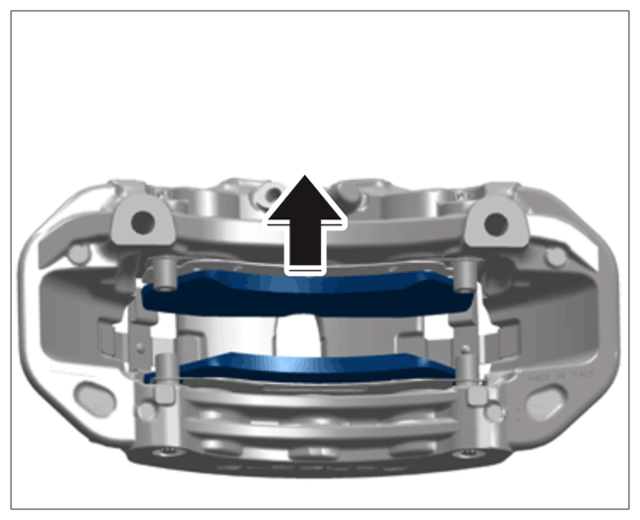

Push disc brake pad into the brake calliper -Arrow- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Brake pad
