Moving Front Brake Calliper Into Service Position

WARNING: This page is about a different variant/trim than selected.

Loosen line bracket -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

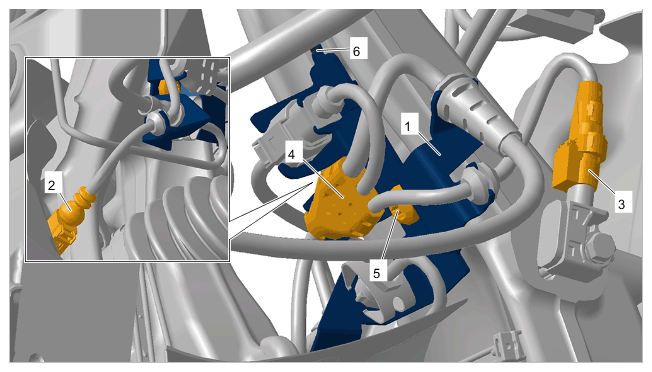

Brake line bracket
1. 1.1 Release and disconnect electric plug connections -2 and 3- .
2. 1.2 Disengage line -4- .
3. 1.3 Unscrew screw on line bracket -5- .
4. 1.4 Disengage retaining lug on line bracket -6- .
Move brake calliper -1- into service position.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

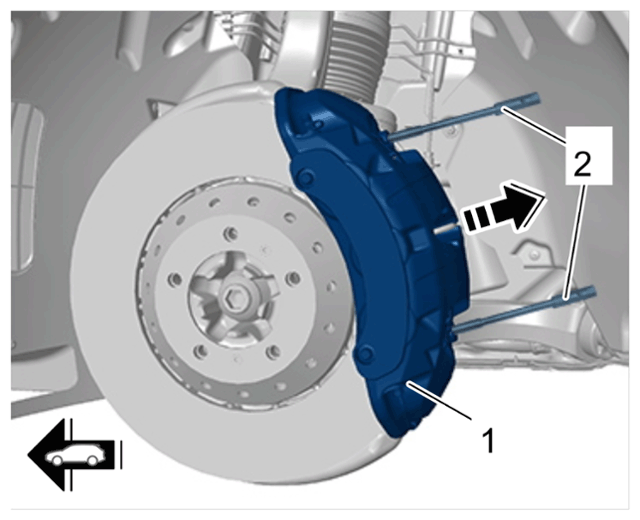

Brake calliper service position
1. 2.1 Remove brake calliper screws one by one and replace them with > T10439 - assembly pins-2- .
2. 2.2 Guide brake calliper -1- onto > T10439 - assembly pin-2- from the brake disc -Arrow- and set it down at the end position on > T10439 - assembly pin-2- .
