Preliminary Work

Information

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

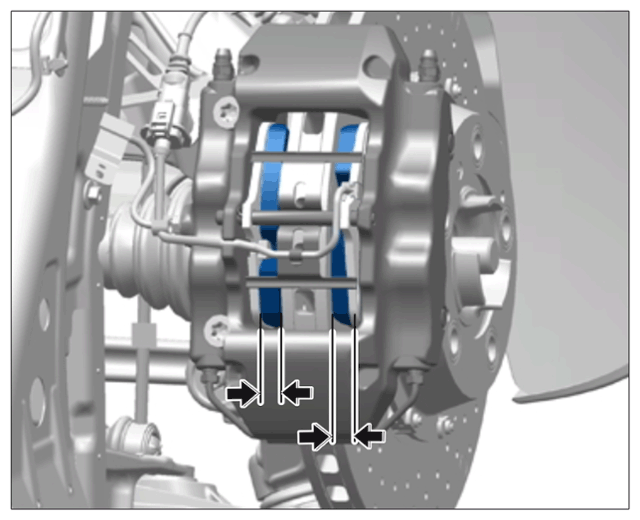

Checking brake pad thickness (shown as an example)

• If brake pad wear is indicated by the warning light, the warning contact line must also be replaced.
• Replacement of the warning contact can be avoided by replacing the brake pads before a pad thickness -Arrows- of 2.5 mm is reached.
• Warning contacts must be replaced if the core of the wire is worn.
• If only the plastic part of the warning contact is worn, the warning contacts need not be replaced.

1. Carefully pull off warning contact -1-  on the brake pad -2-  and then disconnect the cable plug -3-  at the plug connection.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

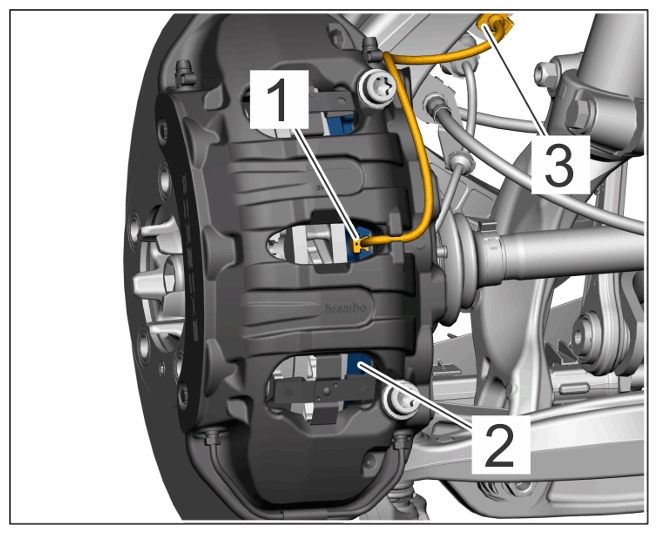

   Brake pad warning contact (example)

2. Loosen brake callipers front. Do not disconnect the brake pipe from the brake calliper.

   > 473919 REMOVING AND INSTALLING BRAKE CALLIPER FRONT - on "Removing"
