Subsequent Work
WARNING: This page is about a different variant/trim than selected.
- Install brake callipers front.
> 473919 REMOVING AND INSTALLING BRAKE CALLIPER FRONT - on "Installing"
Information

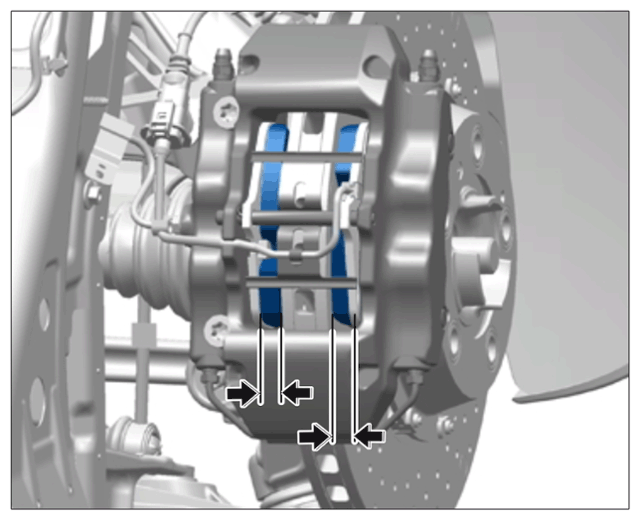

Checking brake pad thickness (shown as an example)
- If brake pad wear is indicated by the warning light, the warning contact line must also be replaced.
- Replacement of the warning contact can be avoided by replacing the brake pads before a pad thickness -Arrows- of 2.5 mm is reached.
- Warning contacts must be replaced if the core of the wire is worn.
- If only the plastic part of the warning contact is worn, the warning contacts need not be replaced.
- Connect warning contact -1-
to the brake pad -2-
, then connect the cable plug -3-
to the plug connection and check that it is seated securely.

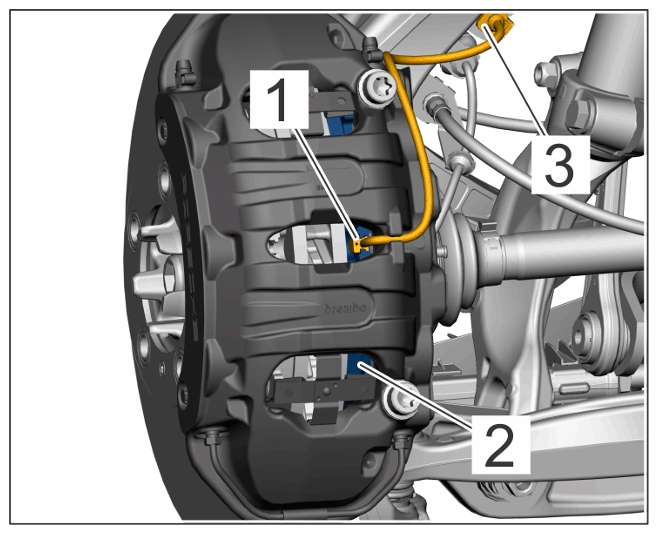

Brake pad warning contact (example)
- Fit brake pads on the brake disc by pressing the brake pedal several times until the pressure point of the brake pedal has returned to normal.
- Check brake fluid level and correct it if necessary.
