Removing Front Pccb Brake Pads

NOTIFICATION

Removing/fitting wheels

• Risk of damage to (ceramic) brake discs

  → Carefully guide the wheel towards the wheel hub, thereby preventing any heavy impact on the (ceramic) brake disc.

NOTIFICATION

Removal of brake calliper

• Paint defects on brake calliper

  → Proceed with care when setting back the brake pads.

  → Protect brake calliper from paint defects using a suitable cloth.

Information

• The core of the warning contact line must not be exposed! Worn insulation is not important!
• If necessary, remove a little brake fluid from the reservoir by suction in order to prevent an overflow when the disc brake pads are pushed back.

Information

• To gain better access for assembly work, it is a good idea to turn the steering fully either to the left or right.

Information

Protect the paintwork on the brake calliper from damage using a suitable cloth.

1. Press brake pistons back.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Brake calliper

   1. 1.1  > T10145 - Piston resetting appliance  must be inserted between the brake pads -2-  .
   2. 1.2  Press the brake pistons back slowly and evenly. Make sure not to damage the dust boots on the brake pistons.

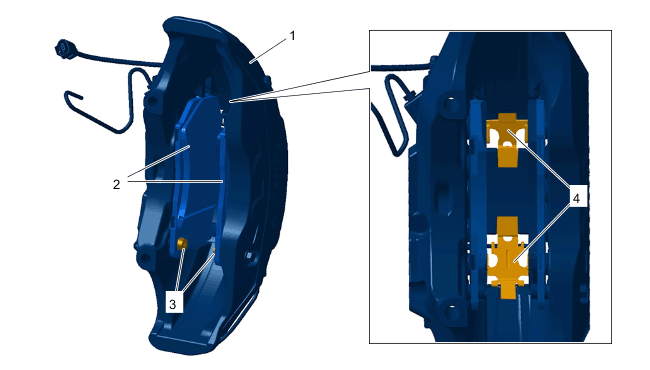

2. Remove brake pads -2-  from brake calliper -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Brake calliper

   1. 2.1  Insert a suitable tool between the brake pads -2-  and brake calliper -1-  .
   2. 2.2  Carefully loosen the brake pads -2-  from the brake calliper -1-  by turning the tool slightly. Make sure not to damage the dust boots on the brake pistons.
   3. 2.3  Remove brake pads -2-  from pad retaining pins -3-  .
   4. 2.4  Remove pad retaining clips -4-  .
