Removing Mounting Saddle

WARNING: This page is about a different variant/trim than selected.

Loosen brake booster -1- .
> 477019 REMOVING AND INSTALLING BRAKE BOOSTER - on "Removing"

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

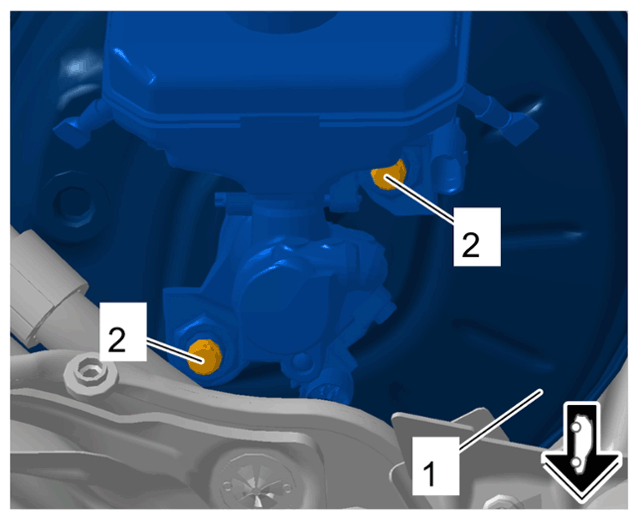

Screws for brake booster
1. 1.1 Unscrew screws for brake booster -2- .
Release and disconnect electric plug connection

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

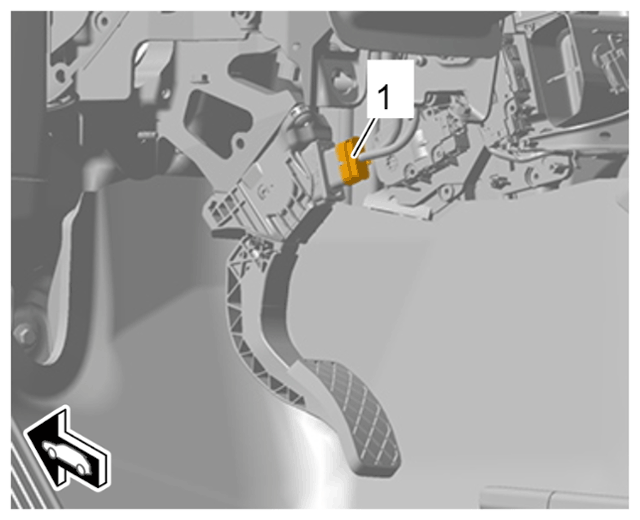

Electric plug connection for accelerator pedal
Remove mounting saddle -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

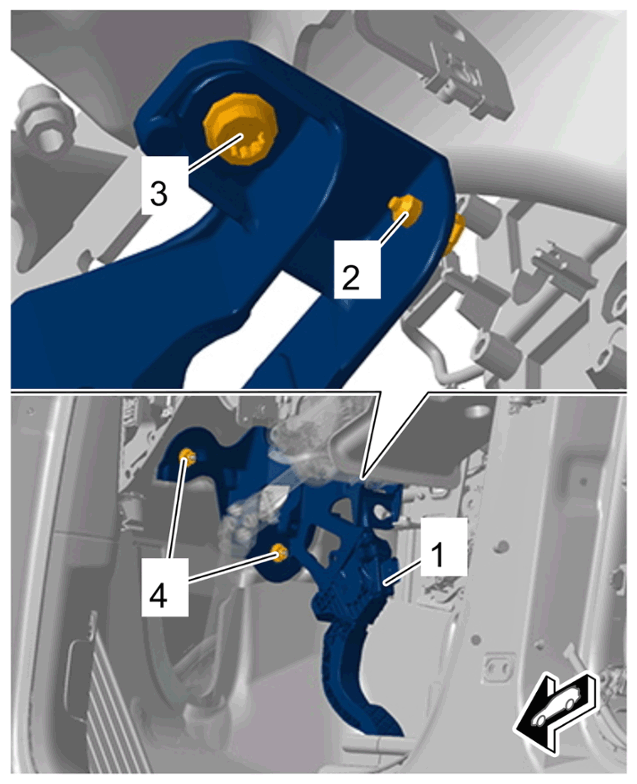

Bearing block
1. 3.1 Unclip clip -2- .
2. 3.2 Unscrew screw -3- .
3. 3.3 Unscrew nuts -4- .
4. 3.4 Remove mounting saddle -1- .
