Installing Brake Pedal

WARNING: This page is about a different variant/trim than selected.

Install brake pedal -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Brake pedal

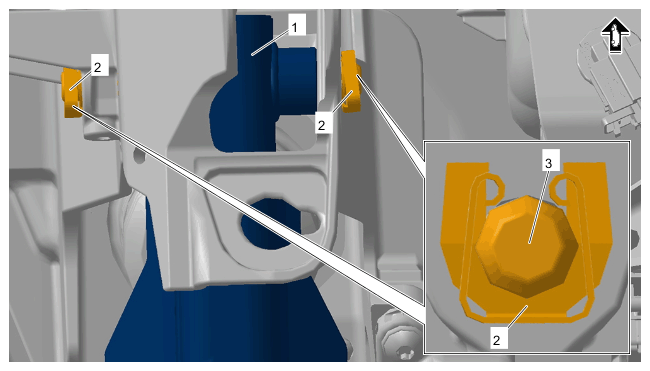

1. 1.1 Insert brake pedal -1- into the mounting saddle.
2. 1.2 Insert bolts -3- into the mounting saddle and brake pedal -1- .
3. 1.3 Push on safety clips -2- on bolts -3- and check that the safety clips -2- are seated correctly.

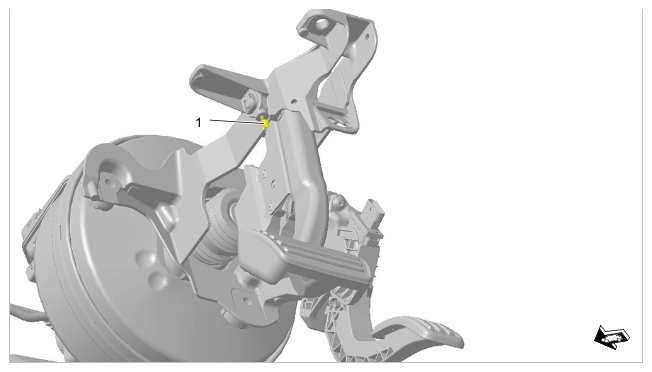

Fit and tighten screw -1- .
> Tightening torque 8 Nm (6 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw for brake pedal mounting saddle
Engage brake booster push rod in the ball joint mounting on the brake pedal. It must lock with an audible click.
