Removing Transmission Control Mechanism

WARNING: This page is about a different variant/trim than selected.
WARNING: Hot fluid
  • Danger of scalding
    1. Let the fluid cool down.
    2. Wear personal protective gear.
CAUTION: Hot components
  • Risk of burns
    1. → Let hot components cool down.
    2. → Wear personal protective gear.
  1. Remove electric pump -1-  .

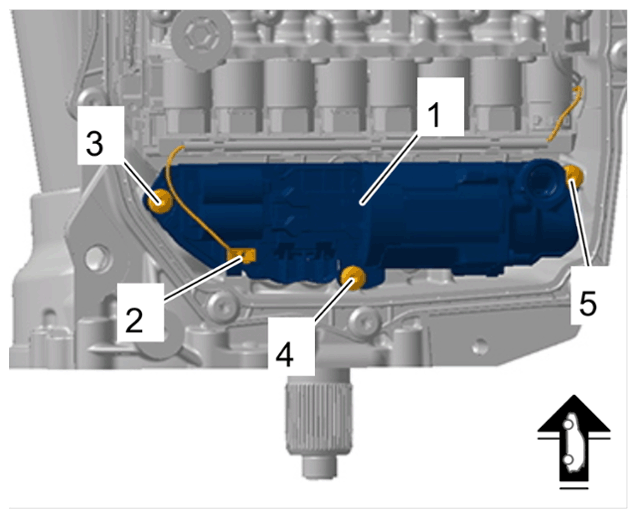

    G15277977Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric pump

    1. 1.1 Release and disconnect electric plug connection -2-  .
    2. 1.2 Unscrew screws in the sequence -5 to 3-  .
    3. 1.3 Pull off electric pump -1-  .

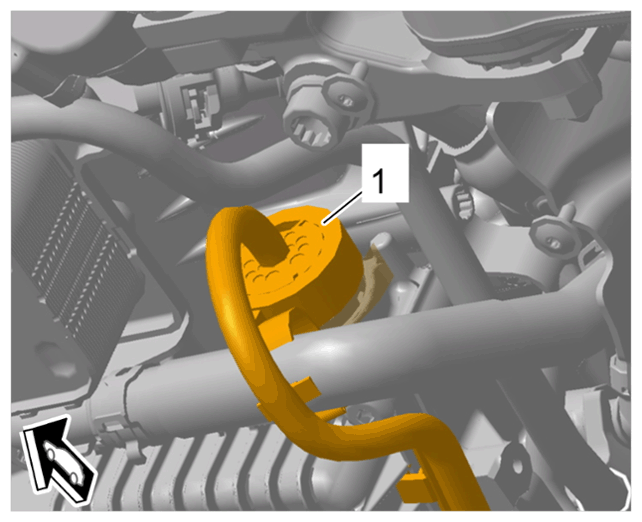

  2. Release and disconnect electric plug connection -1-  on the transmission by turning it anti-clockwise.
    G15277978Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection on transmission

  3. Remove transmission connector housing -1-  .

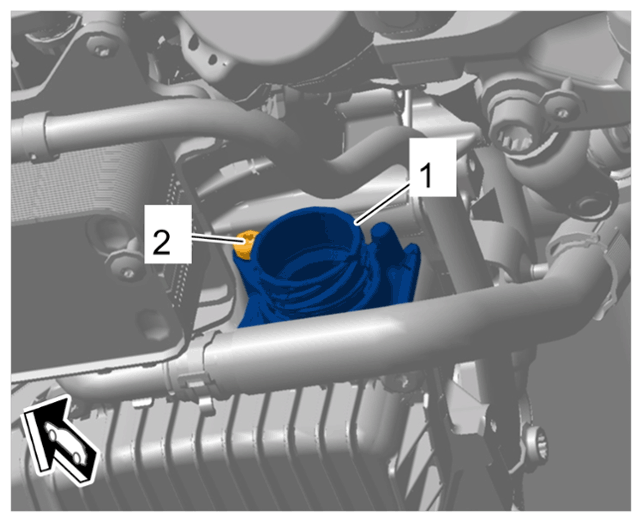

    G15277979Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Transmission connector housing

    1. 3.1 Unscrew screw -2-  .
    2. 3.2 Release and disconnect transmission connector housing -1-  on the transmission by turning it anti-clockwise.
  4. Position gearshift lever for emergency release in a vertical position and secure it at this position with a tie-wrap. This makes it easier to engage the selector valve in the emergency release claw during installation.

    Information

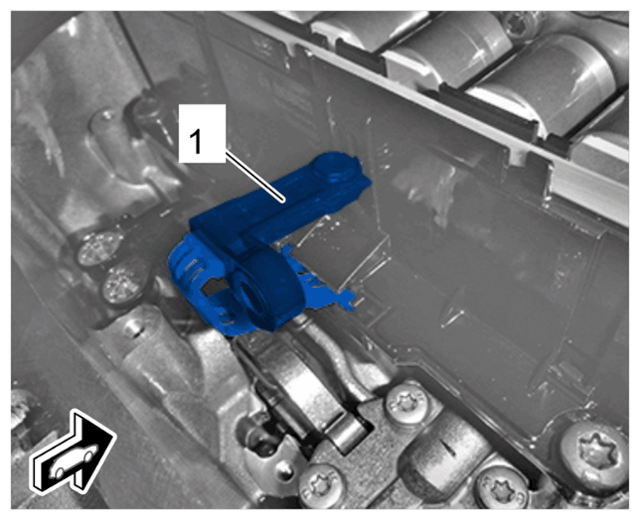

    G15277980Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Rpm sensor in park position

    • To prevent damage to the rpm sensor when removing the transmission control mechanism, the rpm sensor must be secured in the so-called park position.
    • The position of the rpm sensor -1- must be changed as shown for this purpose and must be moved into park position.
  5. Loosen rpm sensor -1-  from transmission housing.

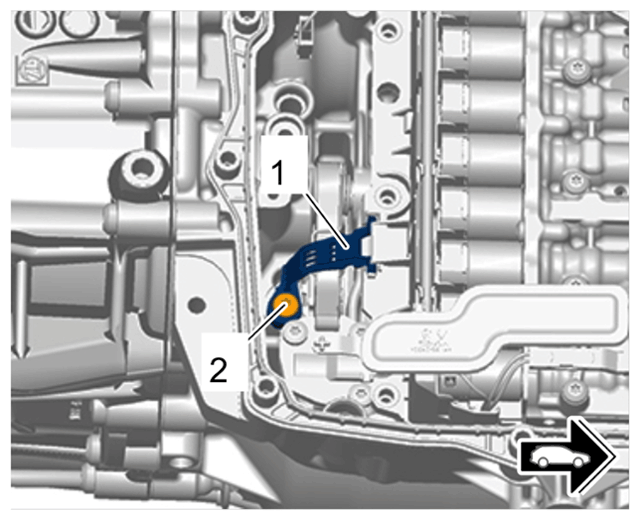

    G15277981Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    rpm sensor

    1. 5.1 Unscrew screw -2-  .
    2. 5.2 Move rpm sensor -1-  into park position.

    Information

    • Only the screws with head screw Torx T40 must be loosened.
    • Loosening other screws can impair the function of the transmission control mechanism or the transmission control mechanism can separate.
  6. Remove transmission control mechanism -1-  .

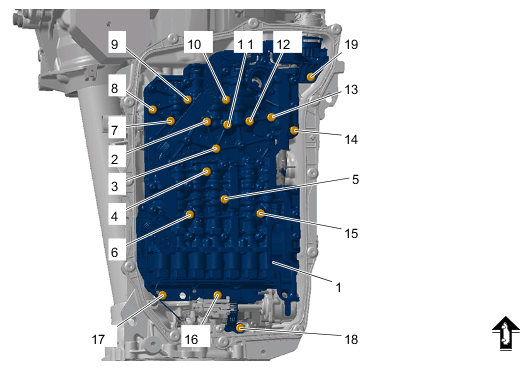

    Fig 1: Transmission Control Mechanism Screws Loosening Sequence
    G15277982Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Transmission control mechanism

    1. 6.1 Unscrew screws in the sequence -19 to 3-  .
    2. 6.2 > T40199 - Centring tool  must be screwed hand-tight into the screw holes -6, 8, 13 and 15-  .
    3. 6.3 Unscrew screw -2-  .
    4. 6.4 Remove transmission control mechanism -1-  .
    5. 6.5 > T40199 - Guide pins  must now be removed.
