Replacing Radial Shaft Seal: Notes

WARNING: This page is about a different variant/trim than selected.

WARNING: Hot fluid

Danger of scalding
1. Let the fluid cool down.
2. Wear personal protective gear.

Remove radial shaft seal -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

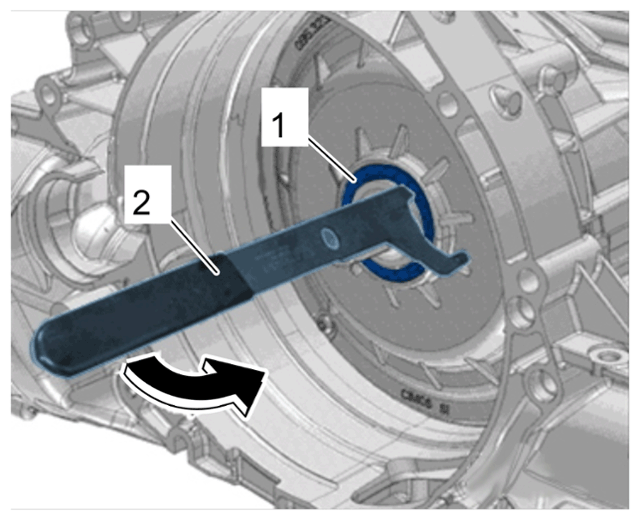

T20143 Extractor tool - on radial shaft seal
1. 1.1 Remove radial shaft seal -1- using > T20143 - extractor hook-2- .
2. 1.2 Clean sealing surfaces thoroughly.
