Installing Radial Shaft Seal
WARNING: This page is about a different variant/trim than selected.
Information
- The open side of the sealing ring must be facing the transmission.
- Install new
radial shaft seal.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

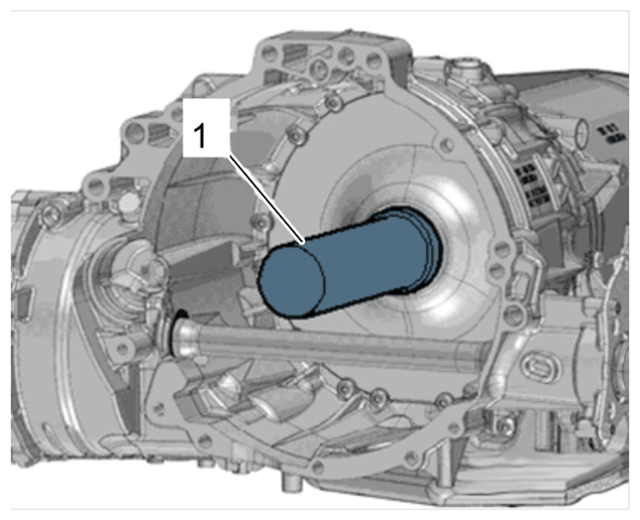

T40240 - Pressure piece on radial shaft seal
- 1.1 Drive in the radial shaft seal using > T40240 - pressure piece (-1-)
up to the stop of the > T40240 - pressure piece -1-
.
