Removing Line For ATF Cooling

WARNING: This page is about a different variant/trim than selected.

NOTE: Aggressive fluids

Risk of damage to components and surfaces
1. → Do not spill fluids.
2. → In the event of contact, wash the component or surface with water.
3. → Replace components that are already damaged.

Have suitable stoppers ready for closing off the line connections.
Have suitable aids ready for soaking up emerging fluids.
Remove line for ATF cooling -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

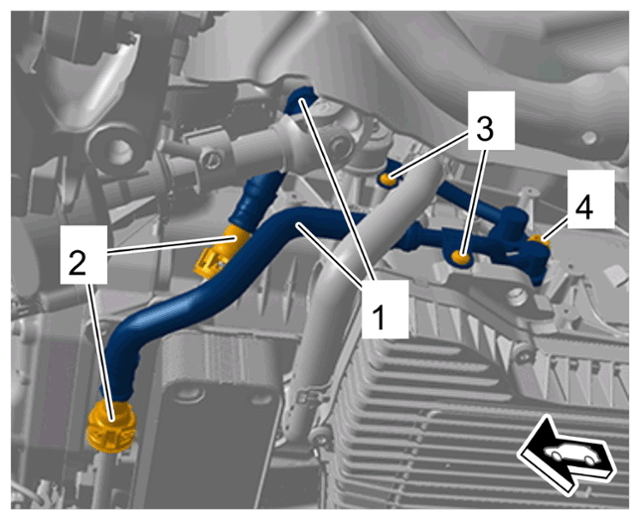

Line for ATF cooling
1. 3.1 Release and disconnect quick connectors securing line for ATF cooling to ATF cooler -2- .
2. 3.2 Unscrew screw on line for ATF cooling -3- and remove line for ATF cooling -1- .
3. 3.3 Close off connections with stoppers.
