Removing Transmission-Oil Pump
WARNING: This page is about a different variant/trim than selected.

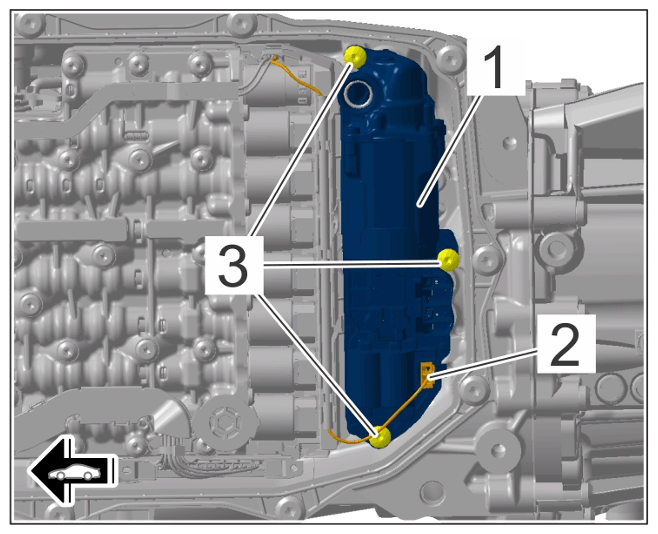

- Remove transmission-oil pump -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Transmission-oil pump
- 1.1 Release and disconnect cable plug -2-
.
- 1.2 Unscrew and remove screws -3-
.
- 1.3 Remove transmission -1-
oil pump.
- 1.4 Check O-rings for damage and replace if necessary.
