Removing Transmission Wire Harness

WARNING: This page is about a different variant/trim than selected.
  1. Remove transmission wire harness in the transmission -4-  .
    1. 1.1 Release and disconnect electric plug connection.
    2. 1.2 Pull off spring clamp for connector housing -1-  .
    3. 1.3 Unscrew screws -3-  .
    4. 1.4 Carefully remove connector housing -Arrow-  from the inside.
    5. 1.5 Disconnect transmission wire harness -2-  .
    6. 1.6 Remove transmission wire harness.

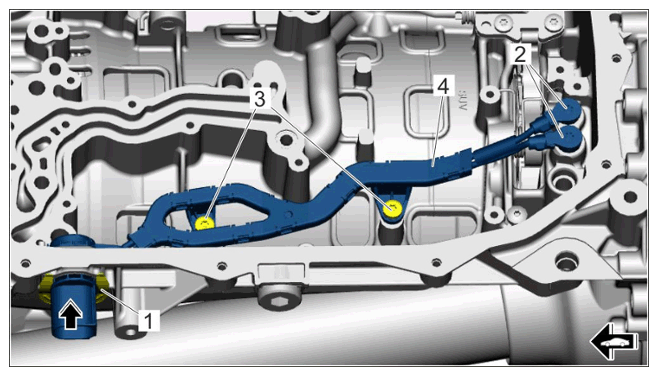

      G15277954Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Wire harness in transmission
