Technical Values

WARNING: This page is about a different variant/trim than selected.

Location	Description	Type	Basic value
steering column lower part on power steering (universal joint)	Item 2: Internal multitooth screw M8 x 30/Always replace screw following removal!	Initial tightening	20 Nm (14.8 ftlb.)
Steering column lower part to power steering (universal joint)	Item 2: Internal multitooth screw M8 x 30/replace screw after every removal!	Final tightening	+ 90°

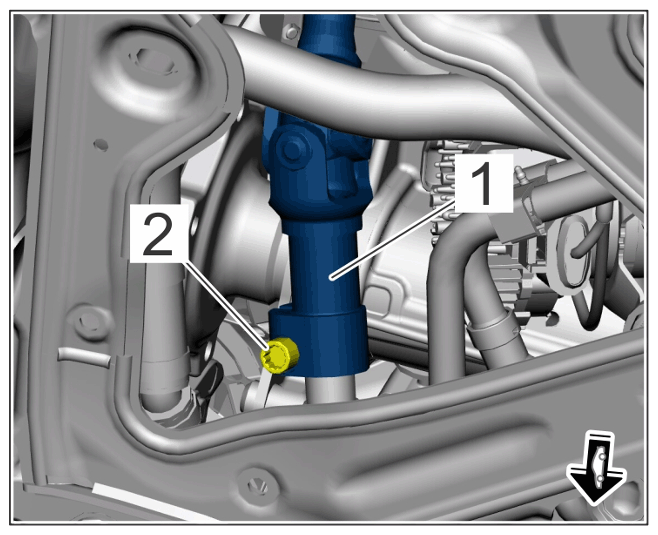

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Universal joint for power-steering/steering column lower part
Power-steering gear on front-axle carrier	Item 2: Hexagon head bolt M12 x 1.5 x 167 and square nut/Always replace bolts and nuts following removal!	Initial tightening	80 Nm (59 ftlb.)

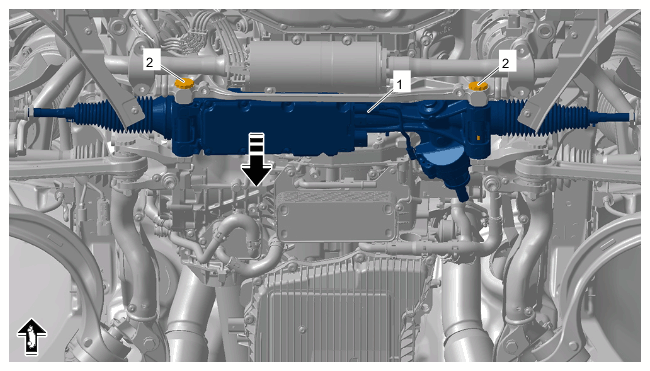

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Power-steering gear
Power steering gear to front-axle carrier	Item 2: Hexagon head bolt M12 x 1.5 x 167 and square nut/Always replace bolts and nuts following removal!	Final tightening	+ 180°
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Power-steering gear
Tie-rod ball to wheel bearing housing	Item 2: Hexagon nut M14 x 1.5/Always replace nut following removal!	Tightening torque	140 Nm (103.3 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for tie rod on wheel bearing housing
PDCC ground line to longitudinal member (front axle)	Ground pin, M10	Tightening torque	16 Nm (12 ftlb.)
