Subsequent Work

WARNING: This page is about a different variant/trim than selected.

Install tie-rod ball -1- at the wheel bearing housing.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

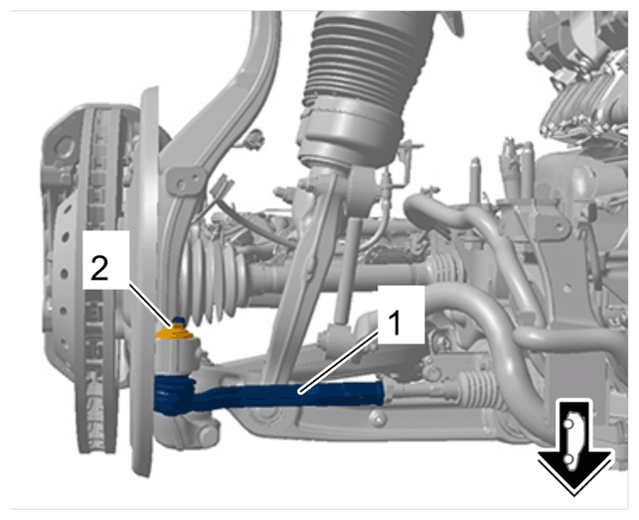

Mounting for tie rod on wheel bearing housing
1. 1.1 Screw on and tighten nut -2- for joint pin on the tie-rod ball.
> Tightening torque 140 Nm (103.3 ftlb.)
Install air guide for brake disc -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

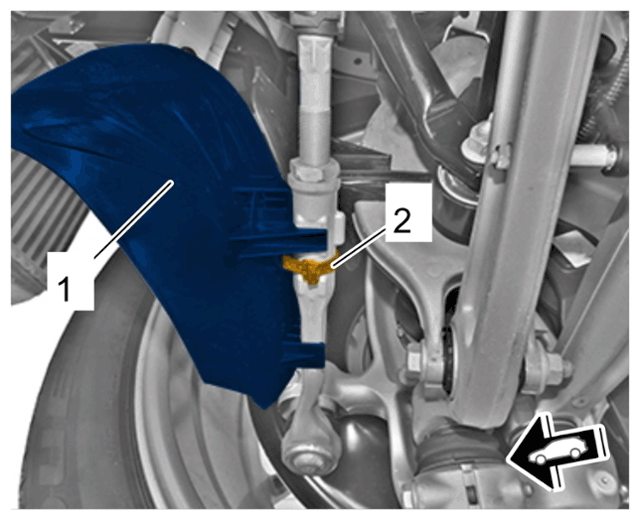

Air-guide element on tie rod
1. 2.1 Position air guide for brake disc -1- .
2. 2.2 Secure air guide for brake disc -1- with a tie-wrap -2- using > VAS 6927 - tie-wrap pliers .
Install anti-roll bar.
> 407719 REMOVING AND INSTALLING FRONT ANTI-ROLL BAR - information on "Installing"

> 407719 REMOVING AND INSTALLING FRONT ANTI-ROLL BAR (PDCC) - information on "Installing"
Install front-axle support.
> 400819 REMOVING AND INSTALLING FRONT-AXLE SUPPORT - information on "Installing"
Fit wheels.
> 440519 REMOVING AND INSTALLING WHEEL - information on "Installing"
Perform start-up procedure for 48 V vehicle electrical system.
> Work instruction for 48 V vehicle electrical system
Teach steering lock settings.
> 489025 TEACHING POWER-STEERING GEAR
Initialise and calibrate steering-angle sensor.
> 456005 INITIALISING AND CALIBRATING STEERING-ANGLE SENSOR
Perform suspension alignment.
> 449503 PERFORMING FRONT + REAR SUSPENSION ALIGNMENT
