Preliminary Work

WARNING: This page is about a different variant/trim than selected.

Disconnect 48-volt vehicle electrical system.
> Work instruction for 48 V vehicle electrical system
Remove wheels.
> 440519 REMOVING AND INSTALLING WHEEL - information on "Removing"
Remove front-axle support.
> 400819 REMOVING AND INSTALLING FRONT-AXLE SUPPORT - information on "Removing"
Remove anti-roll bar.
> 407719 REMOVING AND REINSTALLING FRONT STABILISER - information on "Removing"

> 407719 REMOVING AND REINSTALLING FRONT STABILISER (PDCC) - information on "Removing" The PDCC system can be active when the ignition is switched on (even when the vehicle is stationary). To avoid injury/crushing, only work near the anti-roll bar, lower trailing arm and bellows of the steering gear when the ignition is switched off and always allow for the run-on time of 60 seconds.
To make it easier to remove the tie-rod ball, swivel the relevant wheel bearing housing so that the tie rod is fully extended.

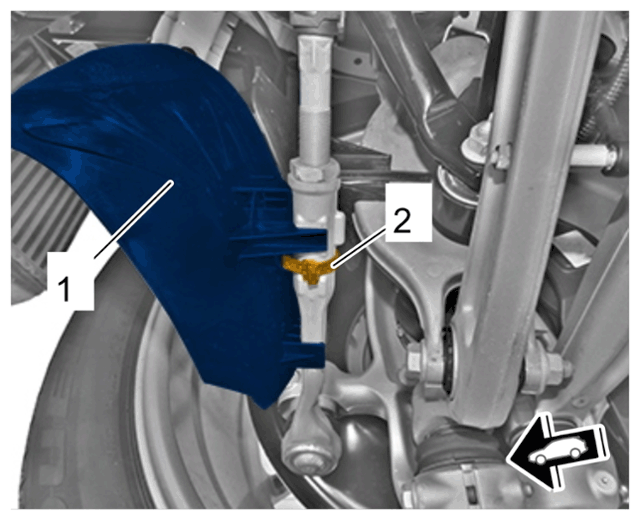

Remove air guide for brake disc -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Air-guide element on tie rod
1. 6.1 Cut tie-wrap -2- .
2. 6.2 Remove air guide for brake disc -1- .

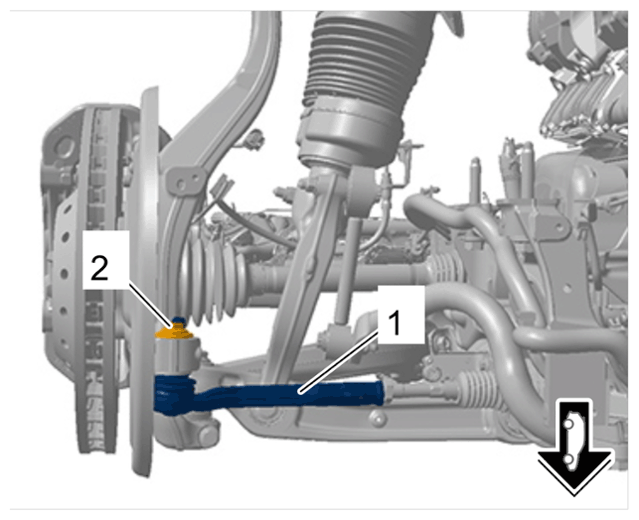

Remove tie-rod ball -1- at the wheel bearing housing.

7.1 Unscrew nut -2- on joint pin for the tie-rod ball as far as required so that it is flush with the upper edge of the joint pin.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for tie rod on wheel bearing housing

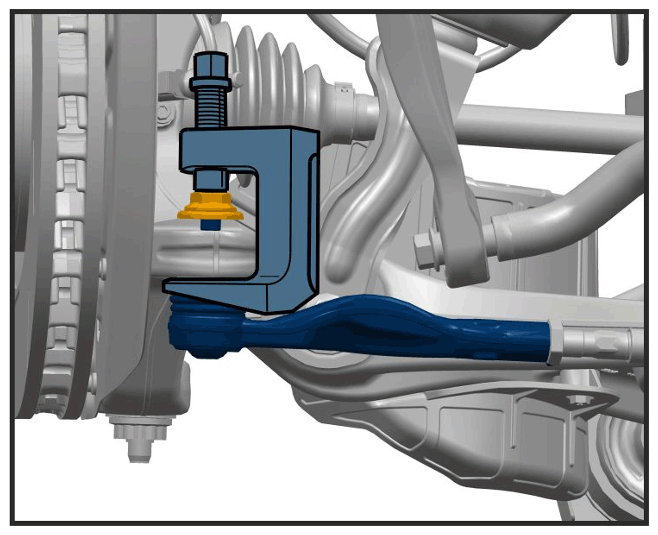

7.2 Press off joint pin on the tie-rod ball using > T40010A - ball joint puller .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Joint pin (shown on the 971)

7.3 Unscrew nut from the joint pin on the tie-rod ball and counter at the hexagon socket of the joint pin.
