Technical Values

WARNING: This page is about a different variant/trim than selected.

Location	Description	Type	Basic value
Stone guard to air supply system holder	Hexagon nut, M6	Tightening torque	9 Nm (6.5 ftlb.)
servo motor for rear axle steering on rear axle housing	Item 3: Hexagon head bolt M12 x 1.5 x 85/Always replace bolts following removal!	Initial tightening	90 Nm (66.4 ftlb.)

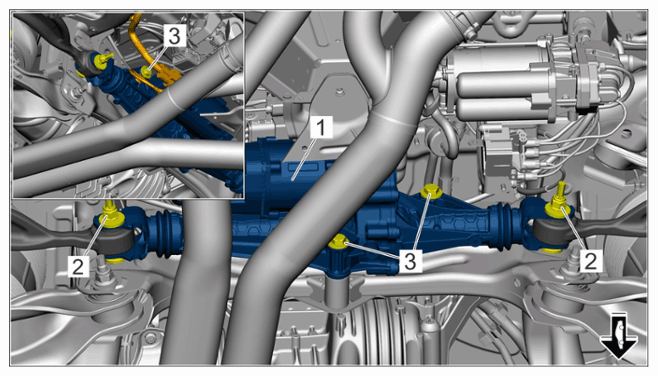

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Servo motor for rear axle steering
Servo motor for rear axle steering to rear axle housing	Item 3: Hexagon head bolt M12 x 1.5 x 85/Always replace bolts following removal!	Final tightening	+ 180°
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Servo motor for rear axle steering
Heat shield to servo motor for rear axle steering	Item 2: Hexagon-head bolt M6 x 12	Tightening torque	9 Nm (6.6 ftlb.)

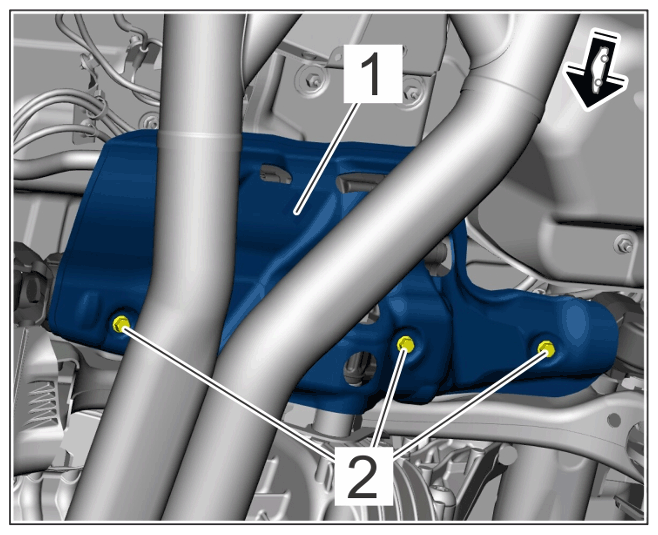

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Heat shield for rear axle steering servo motor
