Removing Servo Motor For Rear Axle Steering

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

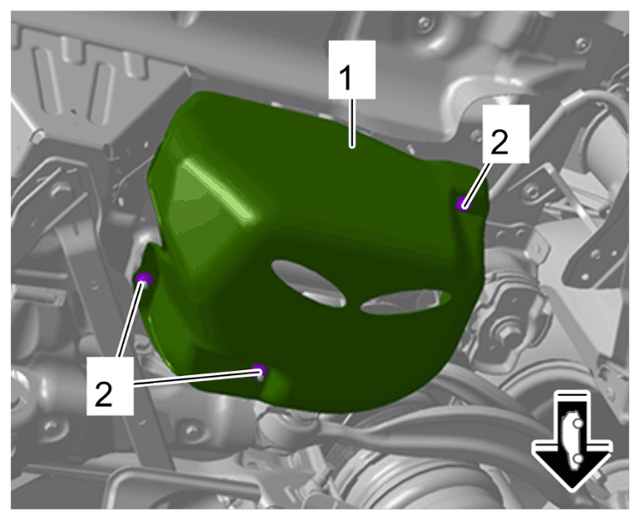

Stone guard for valve unit

1. 1.1  Unscrew nuts -2-  and remove stone guard for valve unit -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

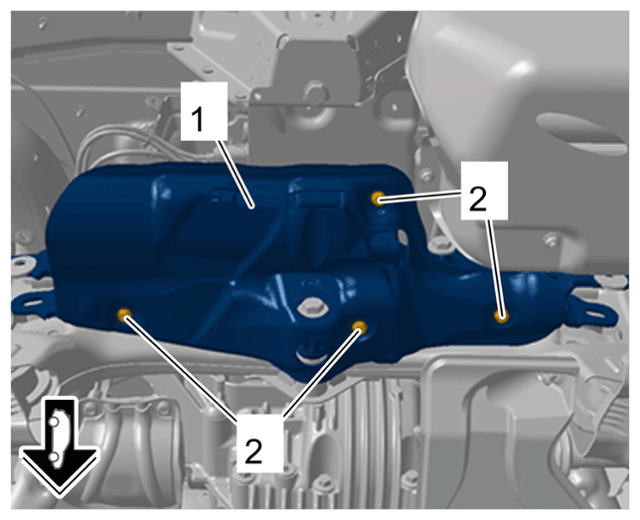

Heat shield on servo motor for rear axle steering

1. 2.1  Unscrew screws on heat shield -2-  .
2. 2.2  Take off heat shield -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

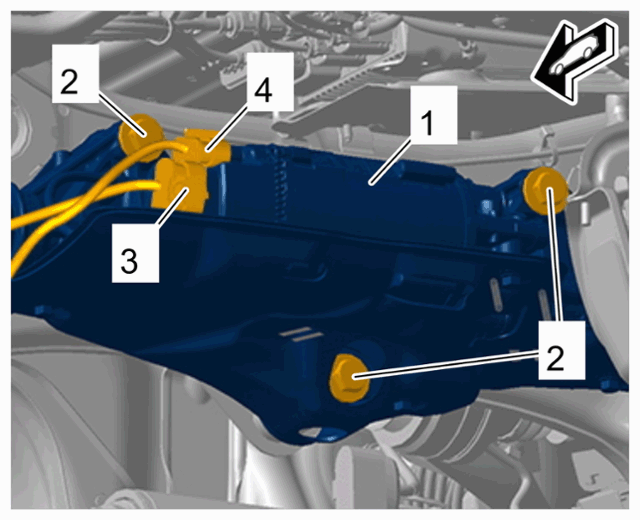

Servo motor for rear axle steering

1. 3.1  Release and disconnect electric plug connections -3 and 4-  .
2. 3.2  Unscrew screws -2-  and remove servo motor for rear axle steering -1-  .
