Technical Values
WARNING: This page is about a different variant/trim than selected.
| Location | Description | Type | Basic value | Tolerance | Tolerance |
|---|---|---|---|---|---|
| Tie rod ball to tie rod (toe adjustment) | M16 x 1.5 thread | Tightening torque | 80 Nm (59 ftlb.) | ||
| Tie-rod ball to wheel bearing housing | Item 2: Hexagon nut M14 x 1.5/Always replace nut following removal! | Tightening torque | 140 Nm (103.3 ftlb.) | ||
|

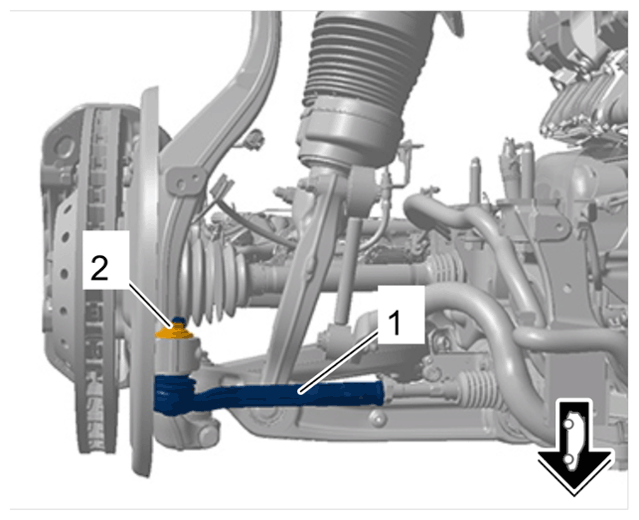

Mounting for tie rod on wheel bearing housing |
|||||
