Technical Values

WARNING: This page is about a different variant/trim than selected.
Location Description Type Basic value Tolerance Tolerance
steering column on steering column center (universal joint) Item 2: Internal serration screw M8 x 30/Always replace screw following removal! Initial tightening 20 Nm (14.8 ftlb.)
Steering column to steering column center (universal joint) Item 2: Internal multitooth screw M8 x 30/replace screw after every removal! Final tightening + 90°

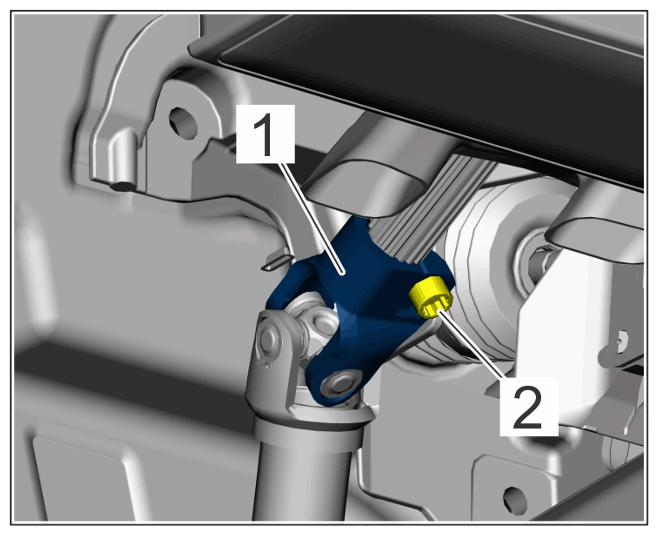

G15289173Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Universal joint steering column center/bottom
steering column lower part on power steering (universal joint) Item 2: Internal multitooth screw M8 x 30/Always replace screw following removal! Initial tightening 20 Nm (14.8 ftlb.)
Steering column lower part to power steering (universal joint) Item 2: Internal multitooth screw M8 x 30/replace screw after every removal! Final tightening + 90°

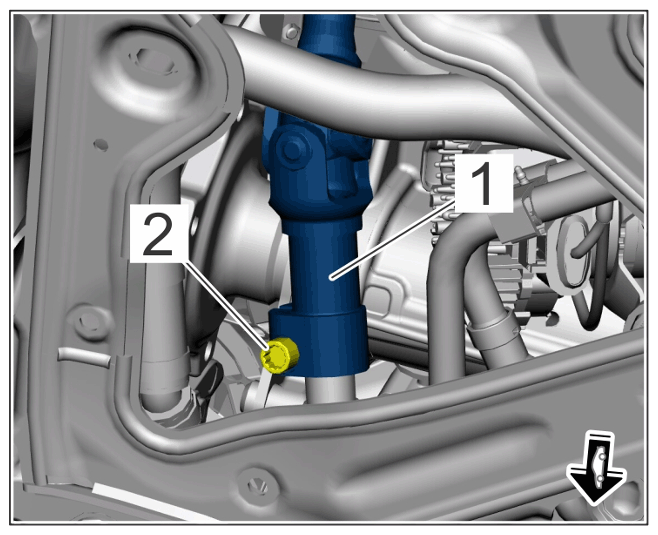

G15289174Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Universal joint for power-steering/steering column lower part
Sealing sleeve for steering column lower part to body M6 screw (LHD vehicles only) Tightening torque 4.5 Nm (3.3 ftlb.)

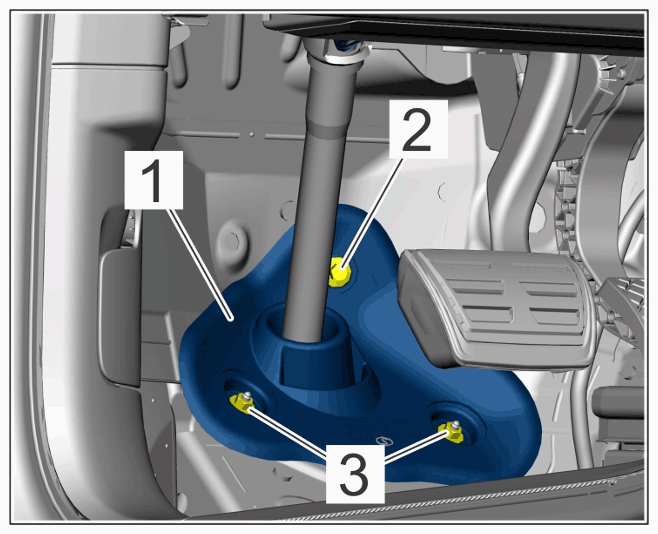

G15289175Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Sealing sleeve on steering column lower part (view of left-hand drive vehicle)
Sealing sleeve for steering column lower part to body Item 3: Nuts M6 Tightening torque 4.5 Nm (3.3 ftlb.)
G15289176Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Sealing sleeve on steering column lower part (view of left-hand drive vehicle)
