Technical Values
WARNING: This page is about a different variant/trim than selected.
| Location | Description | Type | Basic value | Tolerance | Tolerance |
|---|---|---|---|---|---|
| Steering column to retaining frame | Internal serration screws, M8 x 30/observe tightening sequence! | Tightening torque | 20 Nm (14.8 ftlb.) | ||

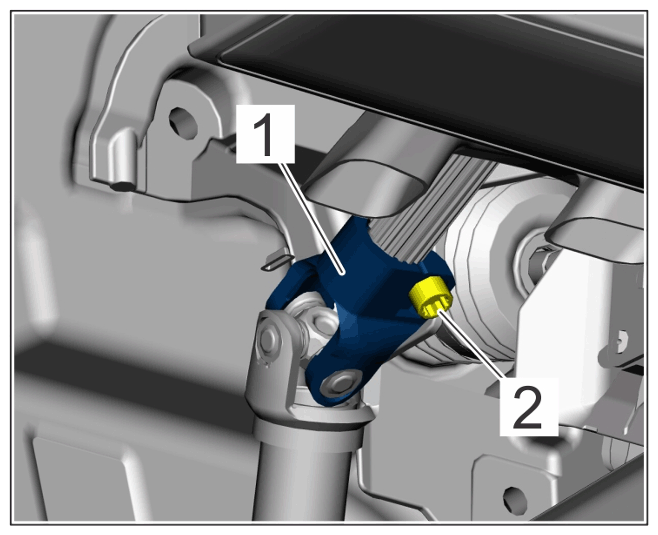

| steering column on steering column center (universal joint) | Item 2: Internal serration screw M8 x 30/Always replace screw following removal! | Initial tightening | 20 Nm (14.8 ftlb.) | ||
| Steering column to steering column center (universal joint) | Item 2: Internal multitooth screw M8 x 30/replace screw after every removal! | Final tightening | + 90° | ||
|
Universal joint steering column center/bottom |
|||||
