Removing Lower Part Of Casing

WARNING: This page is about a different variant/trim than selected.
  1. Remove lower part of steering column casing -1-  .

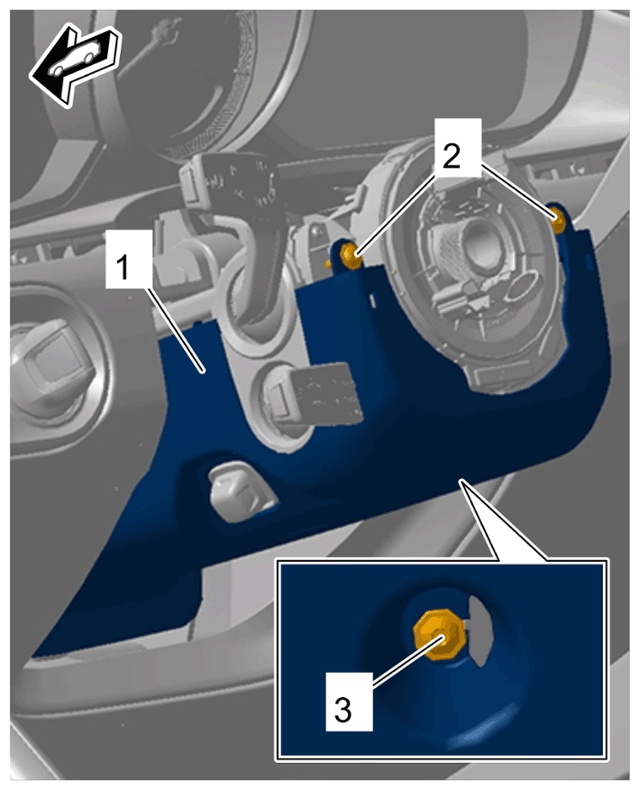

G15289166Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Lower part of casing

  1. 1.1  Turn the steering wheel so that the screws -2-  on the front are accessible.
  2. 1.2  Unscrew screws on casing -2 and 3-  .
  3. 1.3  Unclip electric wire harness from lower part of casing -1-  and release and disconnect electric plug connection for height adjustment switch.
  4. 1.4  Remove lower part of casing -1-  .
